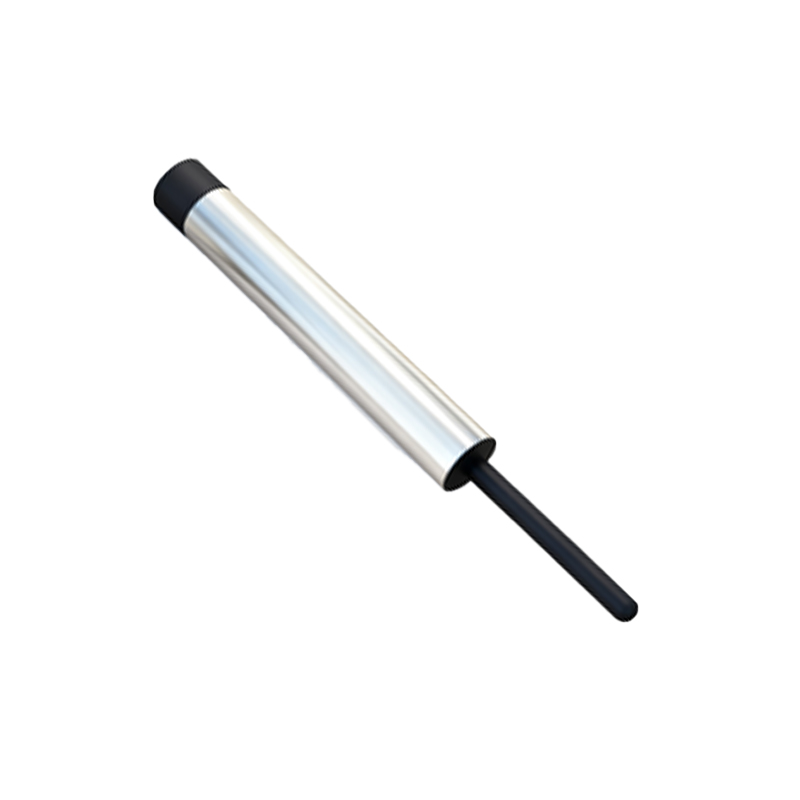

Understanding the Core Challenge
Proximity sensors are fundamental components in industrial automation, providing non-contact detection of objects. However, a common and often challenging application involves detecting objects through a transparent barrier, such as glass. This scenario introduces unique physical and technical hurdles that standard inductive or capacitive sensors cannot overcome. The primary issue is that glass is a dielectric material, effectively blocking the electromagnetic fields used by inductive sensors. Similarly, while capacitive sensors might react to the glass itself, reliably detecting an object behind it with consistency and precision is problematic. This necessitates specialized sensor technologies and careful consideration of application parameters to ensure reliable operation.

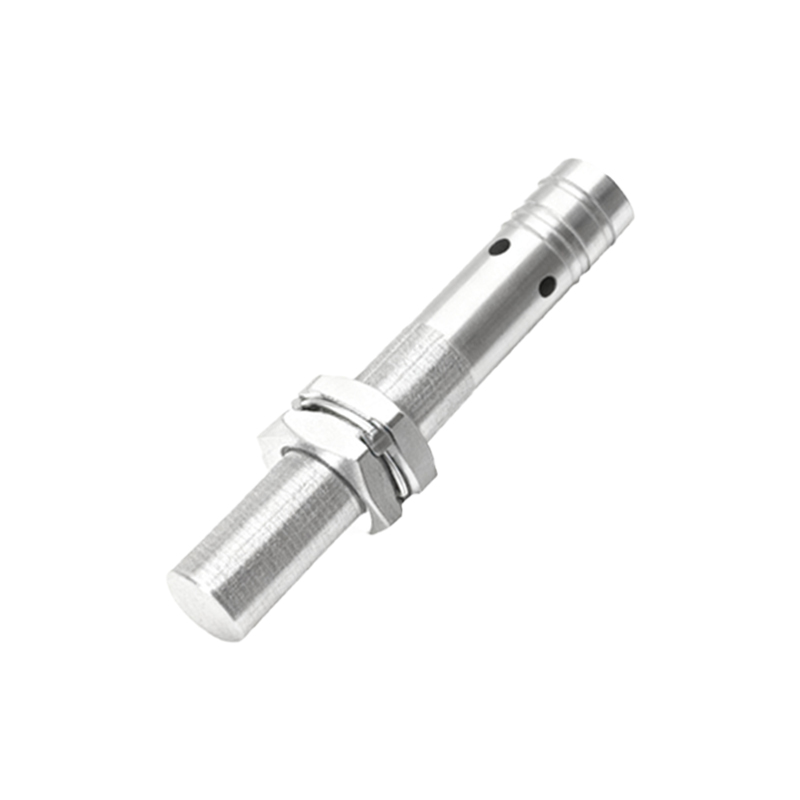

Optical and Ultrasonic Solutions
For through-glass detection, two primary sensor technologies emerge as viable solutions: optical and ultrasonic. Optical sensors, specifically through-beam and diffuse-reflective types, can be effective if the glass is clean and of high optical quality. A through-beam sensor, with its separate transmitter and receiver, can detect an object interrupting the light beam passing through the glass. However, issues like refraction, reflections, and scratches on the glass can cause false triggers or reduced sensing ranges. Diffuse sensors rely on the reflection from the target object and are highly sensitive to the reflectivity of both the target and the glass surface. Ultrasonic sensors operate by emitting sound waves and measuring their reflection. They can reliably detect objects through glass because sound waves travel well through solid materials. The key advantage is that they are largely unaffected by the color or transparency of the target or the glass, making them suitable for detecting a wide variety of materials.
Critical Application Parameters
Successful implementation hinges on meticulously defining the application's parameters. First, the properties of the glass itself are paramount: thickness, type (e.g., tempered, laminated, coated), and surface condition. Thicker glass attenuates both light and ultrasonic signals more significantly. Coatings or laminations may block specific light wavelengths. Second, the characteristics of the target object must be considered—its size, material, and expected distance from the glass. For optical sensors, the target's color and reflectivity are critical; for ultrasonic sensors, its acoustic reflectivity and angle are important. The required response time and switching frequency will also influence technology selection, as ultrasonic sensors typically have slower response times than high-speed optical sensors.
Installation and Alignment Best Practices
Precise installation is non-negotiable for reliable through-glass detection. For optical through-beam sensors, the emitter and receiver must be perfectly aligned on opposite sides of the glass pane. Any angular misalignment can cause the beam to deflect due to refraction, leading to a loss of signal. Mounting fixtures should be rigid and vibration-resistant. For diffuse optical or ultrasonic sensors mounted on one side, the sensor face should be perpendicular to and in full contact with the glass surface, often using a coupling gel or specialized mounting bracket to eliminate an air gap, which severely impedes ultrasonic transmission. Ensuring the sensing area of the glass is kept clean and free from labels, condensation, or persistent dirt is an ongoing maintenance requirement.
Environmental Factors and Interference
The operating environment presents significant challenges. Ambient light, especially strong or fluctuating industrial lighting, can saturate or interfere with optical receivers. Selecting sensors with modulated LED light (often in the infrared spectrum) and corresponding synchronous detection circuits is essential to mitigate this. For ultrasonic sensors, ambient noise at similar frequencies can cause interference. Temperature fluctuations affect the speed of sound, which can slightly alter the sensing range of ultrasonic models; many include temperature compensation for this reason. Both sensor types may be affected by dust, steam, or other particulates in the air between the sensor and the glass, though ultrasonic sensors are generally more robust in such conditions compared to optical ones.
Selection Criteria and Comparative Analysis
Choosing the right sensor requires a systematic comparison. Optical sensors generally offer higher precision, faster response times, and the ability to detect very small objects. They are ideal for clean environments with clear, thin glass and well-defined targets. Ultrasonic sensors excel in robustness, working reliably on dirty, coated, or thick glass, and with targets of varying color and material. They are less prone to problems from glass surface imperfections. However, they have a larger minimum sensing distance (blind zone) and a wider beam angle, which can lead to less precise detection points. A cost-benefit analysis should weigh the initial sensor cost against installation complexity, maintenance needs, and long-term reliability in the specific environment.
Advanced Configurations and Future Trends
For demanding applications, advanced configurations are available. Some optical sensors feature background suppression technology, which can be tuned to ignore the fixed reflection from the glass surface and only respond to the object behind it. Laser-based sensors provide
