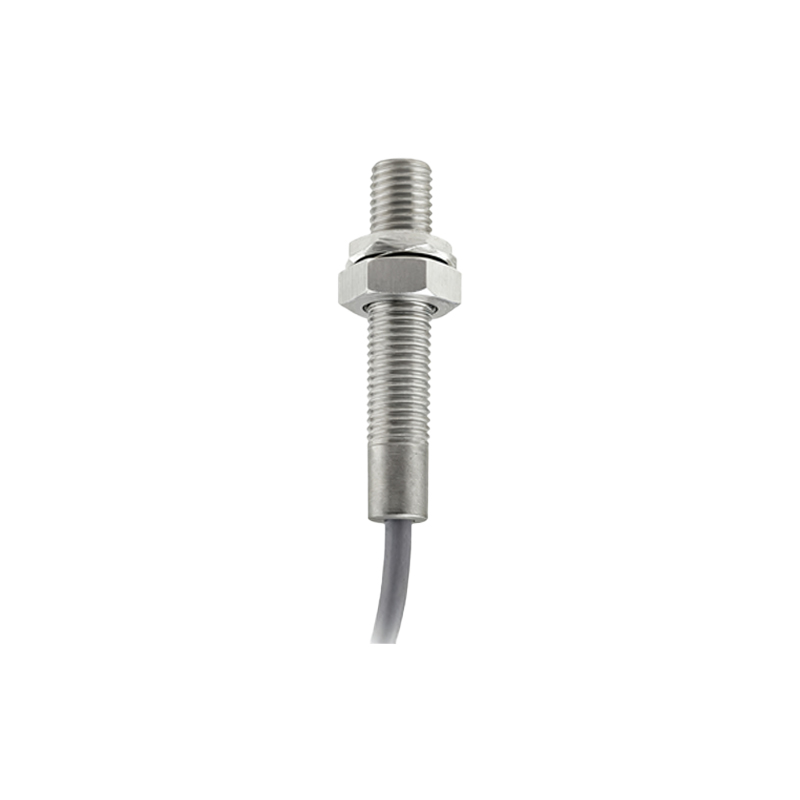

Fundamentals of Optical Proximity Sensing
Optical proximity sensors operate on a relatively simple yet highly effective principle. At their core, these devices consist of an emitter, typically an infrared (IR) light-emitting diode (LED), and a photodetector, such as a phototransistor or photodiode. The emitter projects a beam of light, often modulated at a specific frequency to minimize interference from ambient light. When an object enters the sensor's detection field, it reflects a portion of this emitted light back towards the photodetector. The sensor's internal electronics then process this reflected signal. The key parameter is the intensity of the returned light, which correlates with the object's distance and reflectivity. Unlike physical contact switches, this non-contact method enables detection without wear and tear, making it ideal for applications requiring high reliability and long operational life. The detection range and sensitivity are primarily determined by the power of the emitter, the sensitivity of the receiver, and the optical design of the lens or housing.
From Proximity to Precise Distance Measurement
While basic proximity sensors provide a simple on/off output based on a preset threshold, advanced optical distance sensors quantify the exact separation. This is achieved through several sophisticated techniques. Time-of-Flight (ToF) sensors measure the time delay between emitting a light pulse and receiving its reflection. Given the constant speed of light, this time interval is directly proportional to twice the distance to the target. Another prevalent method is triangulation. Here, the emitter projects a spot of light onto the target. The reflected light is focused onto a position-sensitive detector (like a CCD or CMOS array). As the target distance changes, the position of the light spot on the detector shifts linearly, allowing for highly accurate distance calculation. This method is exceptionally precise for short to medium ranges. Continuous-wave modulation, which analyzes the phase shift between emitted and received modulated light, offers another pathway for precise ranging, balancing speed and accuracy.
Critical Performance Parameters and Specifications
Selecting the appropriate sensor necessitates a deep understanding of its technical specifications. The sensing range defines the minimum and maximum distances at which the sensor can reliably operate. Resolution refers to the smallest change in distance the sensor can detect. Repeatability indicates how consistently the sensor returns the same measurement for a static target. The response time is crucial for high-speed automation, defining how quickly the sensor can update its output after a change. Environmental factors pose significant challenges. Ambient light immunity, often achieved through optical filtering and signal modulation, is vital for stable operation under varying lighting conditions. The target's characteristics—its color, material, and surface finish (e.g., glossy vs. matte)—drastically affect reflectivity and, consequently, sensor performance. Many modern sensors incorporate background suppression or teach-in functionality to compensate for these variables, ensuring reliable detection regardless of object color.
Industrial and Consumer Applications
The versatility of optical proximity and distance sensors has led to their widespread adoption. In industrial automation, they are ubiquitous for object detection on conveyor lines, robotic arm end-effector positioning, roll diameter measurement, and machine guarding. They enable precise control in packaging, material handling, and assembly robots. In the consumer electronics realm, a prime example is the proximity sensor in smartphones, which turns off the touchscreen during a call to prevent accidental inputs. Automotive systems rely on them for parking assistance, gesture recognition for infotainment controls, and occupant detection. Emerging fields like collaborative robotics (cobots) use these sensors for safe human-robot interaction, while augmented/virtual reality devices employ them for head and hand tracking. Their non-contact nature is also invaluable in cleanrooms or when handling delicate materials.
Choosing the Right Sensor for Your Application
The selection process is a systematic trade-off between requirements and sensor capabilities. First, clearly define the required sensing distance, accuracy, and output type (digital switch, analog voltage/current, or digital bus like IO-Link). Consider the physical constraints: the available space for sensor mounting and the required housing material (e.g., metal for rugged environments, plastic for cost-sensitive applications). Evaluate the operating environment—will there be dust, fog, or intense ambient light? For such conditions, sensors with high IP ratings and robust ambient light rejection are mandatory. The nature of the target is equally important; for low-reflectivity objects (like black rubber), a sensor with a high excess gain or a background suppression model is necessary. Finally, factor in connectivity and smart features, such as programmable logic, diagnostics, and integration into Industrial IoT frameworks, which can simplify setup and predictive maintenance.
Future Trends and Advancements
The evolution of optical sensing technology is driven by integration, intelligence, and
