Introduction to Magnetic Reed Technology
Magnetic reed switches, often referred to as dry reed switches, are fundamental electromechanical components that have stood the test of time in the world of sensing and switching. At their core, these devices consist of two or more ferromagnetic reeds, typically made of nickel-iron alloy, hermetically sealed within a glass envelope filled with an inert gas. When an external magnetic field of sufficient strength is applied, the reeds become magnetized, attracting each other and making physical contact to close an electrical circuit. Upon removal of the magnetic field, the inherent spring force of the reeds causes them to separate, breaking the circuit. This simple, yet highly reliable principle forms the basis for a wide range of proximity sensing applications.
Operating Principles of Reed Proximity Switches

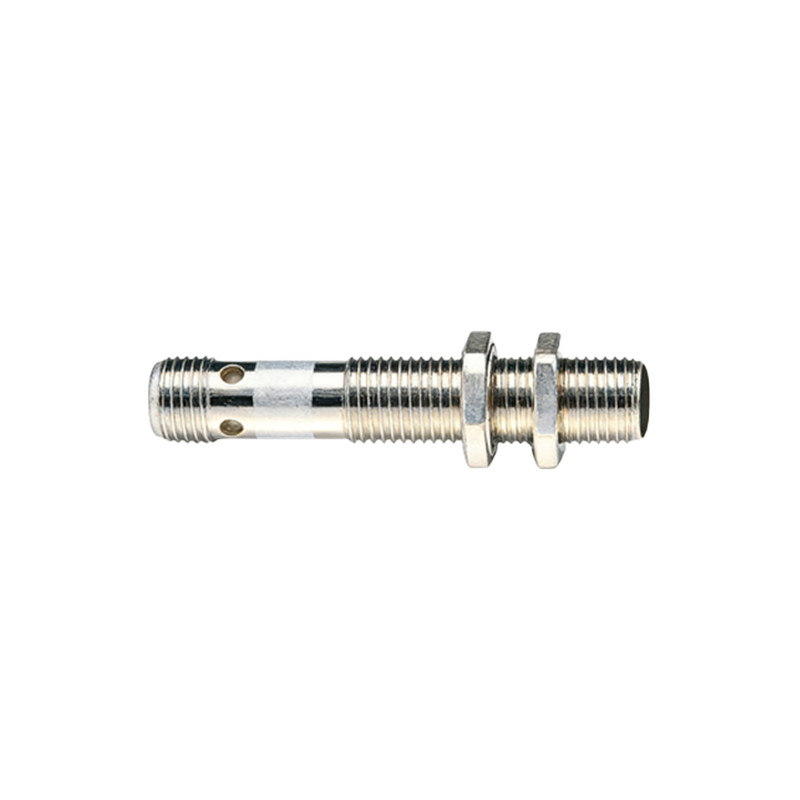

A magnetic reed proximity switch integrates a dry reed sensor with additional components to create a self-contained, non-contact sensing device. The typical assembly includes a permanent magnet housed in a moving part (like a piston or plunger) and a stationary reed switch. When the magnet approaches the reed switch within a specified operating distance, the magnetic field actuates the reeds, closing the contacts. As the magnet moves away, the contacts open. This design allows for the detection of position, presence, or movement without any physical contact between the sensor and the target, eliminating mechanical wear and enabling millions of reliable switching cycles. The key parameters defining their operation are the pull-in value (the magnetic field strength required to close the contacts) and the drop-out value (the point at which the contacts open as the field weakens).
Key Advantages and Inherent Limitations
The enduring popularity of reed-based proximity sensors stems from several distinct advantages. Their hermetically sealed construction makes them highly resistant to environmental contaminants such as dust, dirt, moisture, and even corrosive atmospheres, allowing operation in harsh industrial conditions. They consume zero power in their passive state, making them ideal for low-energy or battery-powered systems. The switching action is fast, clean, and bounce-free in many designs, suitable for digital logic circuits. Furthermore, they are capable of switching low-voltage, low-current signals as well as handling higher loads with appropriate circuitry. However, engineers must also consider their limitations. The glass envelope can be susceptible to physical shock and vibration, though modern designs mitigate this. The operating distance is relatively short compared to some solid-state sensors. Additionally, strong external magnetic fields can cause unintended actuation, and the contacts may weld if subjected to severe inrush currents.
Common Industrial Applications and Use Cases
Magnetic reed proximity switches find extensive use across diverse industries due to their robustness and simplicity. In fluid power systems, they are commonly employed as limit switches on hydraulic or pneumatic cylinders to provide end-of-stroke position feedback. They serve as door and lid sensors in security systems, appliances, and machinery guards, detecting whether an access point is open or closed. Within the automotive sector, they are used in gearbox position sensing, brake fluid level detection, and seatbelt buckle indicators. Other applications include liquid level sensing in tanks using float-mounted magnets, rotary position sensing in encoders, and as safety interlocks on protective covers. Their ability to function in explosive atmospheres (with proper housing) also makes them suitable for certain hazardous locations.
Critical Selection Criteria for Engineers
Selecting the correct magnetic reed proximity switch requires careful analysis of the application parameters. The first consideration is the switching configuration: normally open (NO), normally closed (NC), or changeover (SPDT). The required sensing distance, or operating point, must be specified, keeping in mind a safety margin to account for mechanical tolerances and temperature variations. Electrical ratings are paramount; the maximum switching voltage and current (both AC and DC) must not be exceeded, and the load type (resistive, inductive, lamp) influences contact life. Environmental conditions dictate the required housing material (e.g., brass, stainless steel, PBT plastic) and ingress protection (IP) rating. Temperature range, shock/vibration resistance, and response frequency are also critical. For demanding applications, specially designed versions with magnetically biased reeds or shielding are available to improve resistance to external magnetic fields.
Comparison with Solid-State Proximity Sensors
While reed switches offer passive operation and excellent isolation, it is instructive to compare them with active solid-state sensors like inductive, capacitive, or Hall-effect proximity switches. Solid-state sensors generally offer longer sensing distances, faster switching frequencies, and are completely immune to contact wear or bounce. They are also more robust against physical shock. However, they require a continuous power supply, generate a small leakage current even when off, and can be
