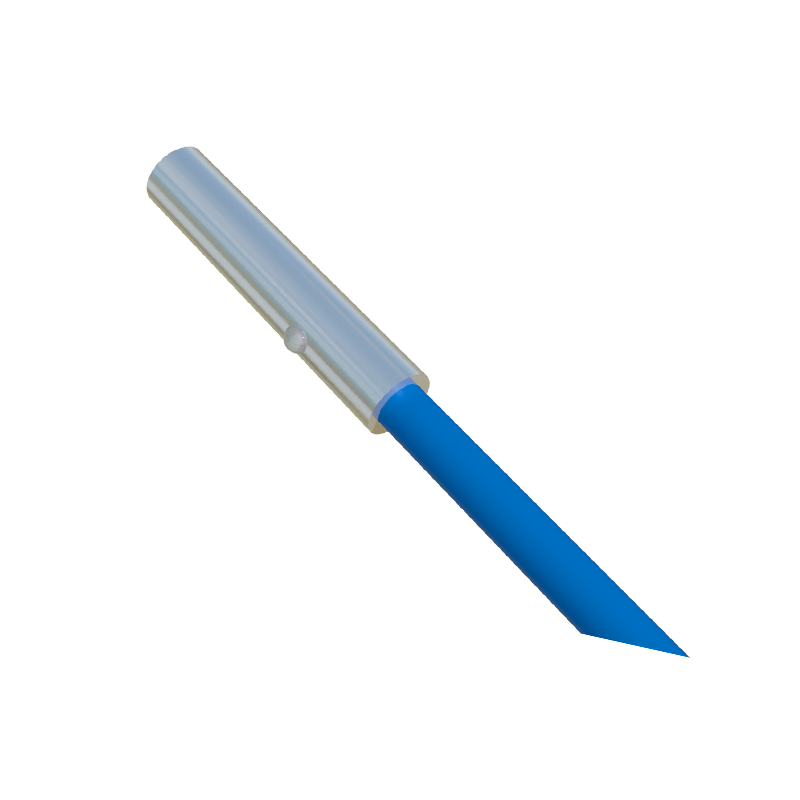

Introduction to Proximity Sensing Technology
Proximity sensors are indispensable components in modern industrial automation, enabling the detection of objects without physical contact. Among the various types available, the E2S series represents a prominent line of inductive proximity sensors. These sensors are renowned for their reliability, durability, and precision in harsh industrial environments. They operate on the fundamental principle of electromagnetic induction, which allows them to detect the presence or absence of metallic objects. The "E2S" designation typically refers to a specific model series from manufacturers like Omron, a leader in sensor technology. Understanding the underlying principle of these sensors is crucial for engineers and technicians involved in system design, maintenance, and optimization.
Core Operating Principle: Electromagnetic Induction
The fundamental working principle of an E2S inductive proximity sensor is based on electromagnetic induction. The sensor's core contains an oscillator circuit that generates a high-frequency electromagnetic field. This field radiates from the sensor's active face, which is usually made of a ferrite core. When a metallic target enters this oscillating field, eddy currents are induced on the surface of the target. These eddy currents draw energy from the oscillator circuit, resulting in a decrease in the amplitude of the oscillations. An internal detection circuit continuously monitors this oscillation amplitude. Once the amplitude drops below a predetermined threshold—indicating the presence of a metal object within the sensing range—the sensor's output state changes, typically switching a solid-state transistor (PNP or NPN) to signal the detection event to a controller like a PLC.
Key Components and Internal Circuitry
An E2S sensor is a sophisticated assembly of several key components. The primary elements include the oscillator coil, the ferrite core, the detection circuit, and the output switching device. The oscillator generates the high-frequency field, often in the range of several hundred kilohertz. The ferrite core concentrates and directs this electromagnetic field. The detection circuit is the "brain," analyzing the oscillation damping. Advanced models incorporate temperature compensation circuits to ensure stable performance despite ambient temperature fluctuations. The output stage is crucial; it provides the interface to the control system. Many E2S sensors feature short-circuit and reverse polarity protection, enhancing their robustness. The housing is typically constructed from nickel-plated brass or stainless steel, offering high resistance to corrosion, chemicals, and physical impacts.
Sensing Characteristics and Performance Parameters
Several key parameters define the performance of an E2S proximity sensor. The sensing distance, or nominal range, is a critical specification, indicating the standard distance at which a standard target can be reliably detected. It is important to note that the actual sensing distance can be affected by the target material, size, and shape. For instance, steel is detected at the nominal range, while non-ferrous metals like aluminum or copper have a reduced effective sensing distance. Another vital parameter is the hysteresis, which is the difference between the switch-on and switch-off points. This feature prevents output chatter when a target is at the edge of the sensing range. Response frequency, indicating how many detection cycles per second the sensor can handle, is essential for high-speed applications. Environmental ratings, such as IP67 for dust and water ingress protection, are also standard for the E2S series.
Target Material and Size Considerations
The detection capability of an inductive E2S sensor is highly dependent on the target's material properties and physical dimensions. Ferrous metals, such as mild steel, provide the strongest response and the full nominal sensing distance. Non-ferrous metals induce weaker eddy currents, leading to a reduced sensing range; correction factors (e.g., 0.4 for copper, 0.5 for aluminum) are applied to the nominal range. The target size must also be considered. For optimal performance, the target should be at least as large as the sensor's sensing face. If the target is too small, it may not dampen the oscillator sufficiently for reliable detection. Standardized test targets, usually a square of mild steel, are defined by international standards (e.g., IEC 60947-5-2) to ensure consistent specification reporting across manufacturers.
Wiring Configurations and Output Types
E2S proximity sensors are available in various wiring configurations and output types to suit different control system requirements. The two primary output transistor types are PNP (sourcing) and NPN (sinking). A PNP sensor switches the positive voltage line to the load, while an NPN sensor switches the negative or ground line. The choice depends on the input module of the PLC or controller being used. Wiring is typically done via pre-attached cables or connector versions for easy replacement. Many models offer both Normally Open (NO) and Normally Closed (NC
