In the realm of industrial automation and machine design, proximity sensors are indispensable components for non-contact object detection. A fundamental and often scrutinized specification is their accuracy. This parameter is not a single, universally defined value but a complex characteristic influenced by multiple factors. Understanding "proximity sensor accuracy" requires delving into its definition, influencing variables, and practical implications for system design.
Firstly, it is crucial to distinguish between accuracy, repeatability, and resolution, as these terms are frequently conflated. Accuracy refers to the degree of conformity between the actual measured distance (or position) of a target and the distance indicated by the sensor's output. It is the maximum expected error between the true value and the sensor's reading under specified conditions. Repeatability, often more critical in industrial settings, is the sensor's ability to consistently produce the same output when the same target is presented repeatedly under identical conditions. A sensor can have excellent repeatability (high precision) but poor accuracy if there is a consistent offset. Resolution is the smallest change in distance the sensor can detect and reliably report.

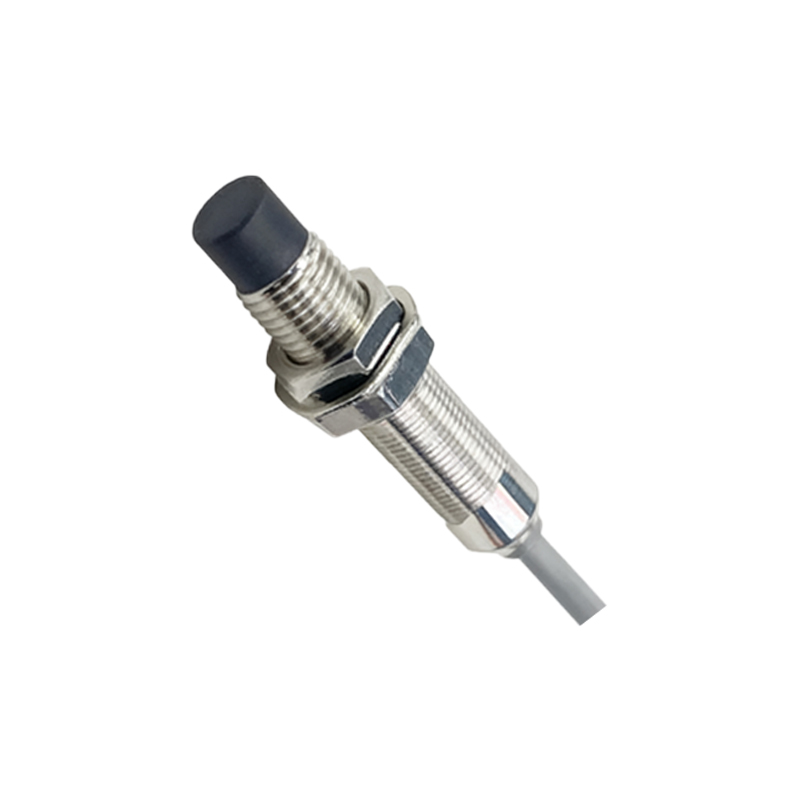

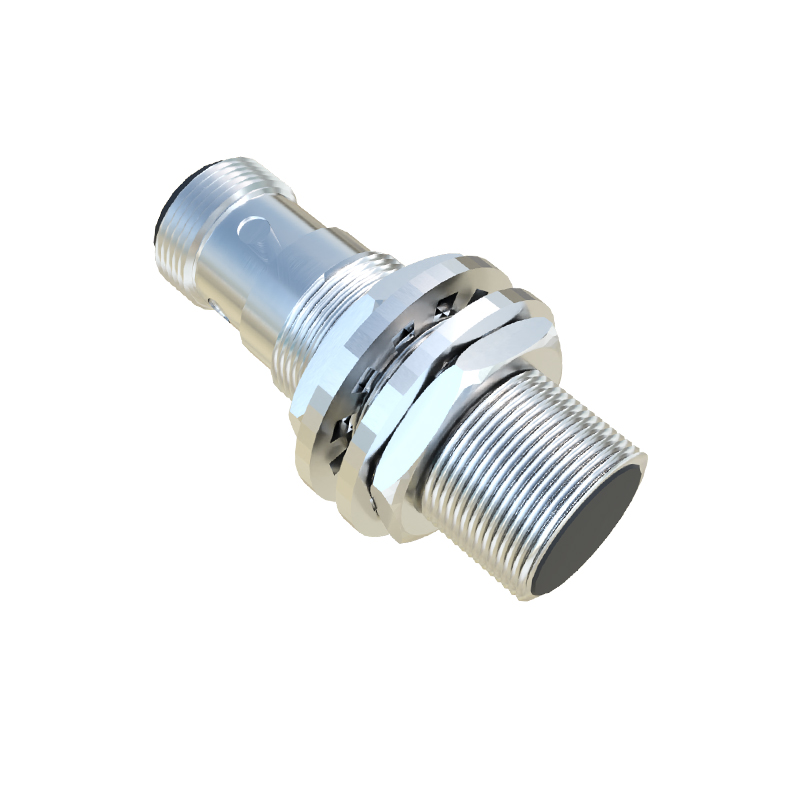

The stated accuracy of a proximity sensor is highly dependent on its operating principle. Inductive sensors, used for detecting metallic objects, typically offer very high repeatability, often within microns (µm), but their effective sensing range is limited, and accuracy can be affected by the target material's type, size, and shape. For a standard mild steel target, accuracy might be specified as ±1% of the sensing distance or a fixed value like ±50µm. Capacitive sensors, suitable for both metallic and non-metallic materials, can have accuracy specifications in the range of ±1% to ±5% of the full scale, but are more susceptible to environmental factors like humidity and contamination.
Photoelectric sensors, including diffuse, retro-reflective, and through-beam types, have accuracy considerations tied to their light beam characteristics. Their "accuracy" in positioning is often defined by the beam spot size and the sensor's response time. For precise edge detection or small part positioning, a focused beam sensor with a small spot size provides higher effective accuracy. Ultrasonic sensors measure time-of-flight and generally have accuracy specifications around ±0.1% to ±1% of the measured range, but can be influenced by air temperature, turbulence, and target surface angle.
Several key factors directly impact the real-world accuracy of any proximity sensor:
1. Target Characteristics: Material, size, shape, and surface finish. A sensor calibrated for a 30mm square steel plate will not provide the same accuracy for a 10mm round aluminum disc.
2. Environmental Conditions: Temperature fluctuations can cause thermal drift in electronic components and affect sonic speed (for ultrasonics). Humidity, dust, oil, and electromagnetic interference (EMI) can also degrade performance.
3. Installation and Alignment: Proper mounting, perpendicular alignment to the target, and ensuring a vibration-free setup are paramount. Mechanical misalignment is a common source of error.
4. Power Supply Stability: Voltage variations can affect the sensor's internal reference levels and output signal.
5. Sensor Aging: Over an extended operational life, component characteristics may drift, necessitating periodic verification.
Manufacturers typically specify accuracy in their datasheets under ideal, controlled conditions: a standard target (e.g., Fe 360 steel), at a defined temperature (e.g., 23°C ±5°C), and with a stable power supply. It is an engineering responsibility to derate these figures for the actual application environment. A common practice is to apply a safety factor, using only 60-70% of the sensor's nominal sensing range or accuracy specification to account for real-world variances.
For high-precision applications, such as robotic assembly, semiconductor manufacturing, or precision metrology, selecting the right sensor is critical. Here, inductive sensors with analog current or voltage outputs (4-20mA, 0-10V) are often preferred for their high resolution and linearity within a narrow range. Laser distance sensors offer superior accuracy, down to micrometer levels, but at a higher cost.
In conclusion, asking "what is the accuracy of a proximity sensor?" necessitates a contextual answer. There is no single value. A pragmatic approach involves:
Carefully reviewing the manufacturer's datasheet for accuracy, repeatability, and linearity specifications under defined conditions.
Thoroughly analyzing the application's environmental and target variables.
Conducting real-world testing with the actual target and in the final operating environment to establish the achievable system-level accuracy.
Prioritizing repeatability over absolute accuracy if the task involves consistent positioning rather than absolute measurement.
By understanding these nuances, engineers can make informed sensor selections, design robust systems with appropriate tolerances, and effectively troubleshoot detection issues, ensuring reliable and precise operation in automated processes.
