0.8MP Global Shutter Smart Vision Sensor
✨Features
Product Introduction
Enhance your production line accuracy with the Vision Sensor. This ultra-compact monochrome camera combines a powerful global shutter sensor with onboard processing to solve complex inspection tasks—such as part counting, dimensional measurement, and flaw detection—in real-time.
Engineered for industrial automation, it connects effortlessly to major PLC systems via PROFINET, EtherNet/IP, or Modbus. With its integrated lighting and rugged IP54 design, the Vision Sensor provides a reliable, all-in-one solution for quality control in tight spaces.

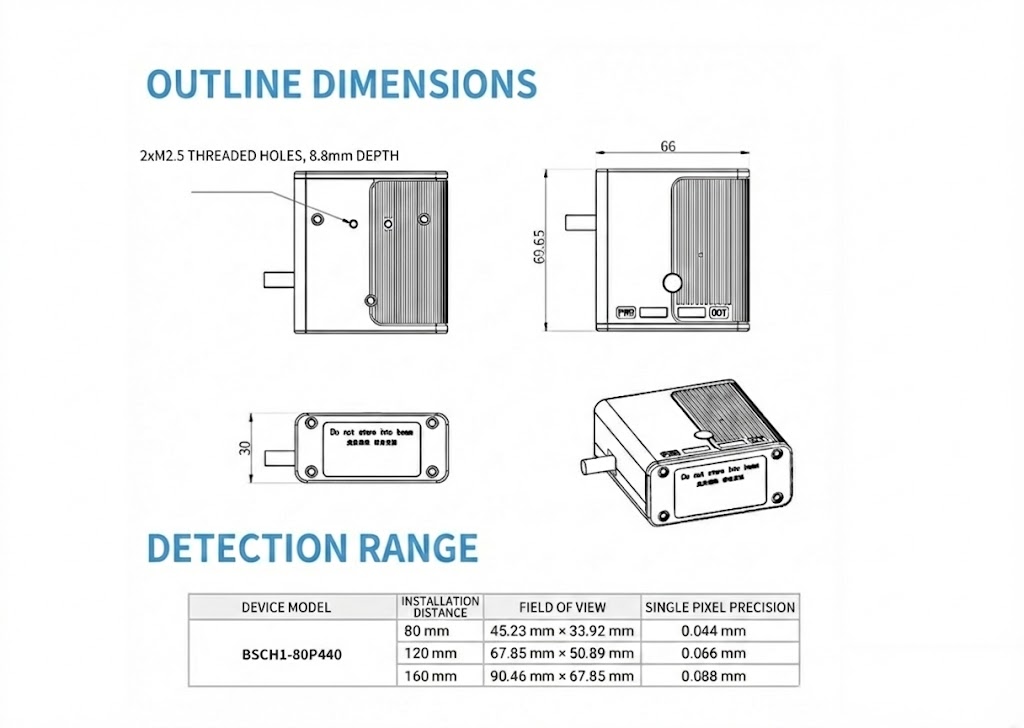

Size and Structure
| Parameter | Specification |
|---|---|
| Sensor Type | 0.8 MP Monochrome CMOS (Global Shutter) |
| Resolution | 1024*768pixels |
| Frame Rate | Max. 15 fps |
| Vision Tools | Counting, Presence/Absence, Logic, Measurement (Angle, Width, Area, etc.) |
| Program Storage | Up to 8 schemes; 40 modules |
| Lens & Focus | 4.9 mm Focal Length (M5-mount); 240 mm Working Distance |
| Illumination | Integrated White LED |
| Aimer | Cross Laser |
| Protocols | Modbus, EtherNet/IP, PROFINET, TCP/IP, UDP, FTP, SLMP, FINS |
| Data Interface | Fast Ethernet (100Mbit/s) |
| Digital I/O | 1 Input, 1 Output, RS-232 |
| Power Supply | 12 ~ 24 VDC |
| Dimensions | 38mm*38mm*19mm |
| IP Rating | IP54 |
| Software | SCMVS |
FAQ
Q：Does this sensor require a separate controller PC?
A：No. The BSCH1-80P440 processes images internally using built-in vision tools, sending only the results (data) to your system.
Q：Is it suitable for high-speed conveyor belts?
A：Yes. The Global Shutter sensor eliminates motion blur and distortion, making it perfect for inspecting moving parts.
Q：What communication protocols are supported?
A：It supports industry standards like EtherNet/IP, PROFINET, Modbus, and TCP/IP, ensuring compatibility with most PLCs and robots.
Q：How do I set up the inspection criteria?
A：Setup is done via the SCMVS software, where you can configure tools for counting, measuring, and logic analysis.
