KJRF-A4 High-Frequency Laser Ranging Sensor
✨Features
Product Introduction
This High-Speed Dynamic Laser Distance Sensor is designed for automation applications requiring rapid response and versatility. With a lightning-fast 0.5ms response time, it excels in dynamic environments, reliably tracking objects moving at speeds exceeding 2 meters per second.
The sensor's advanced optical system overcomes common detection limitations, allowing it to measure black targets (such as coal and rubber), semi-transparent materials, and even black mirror-like surfaces that confuse traditional lasers. It offers a measurement range of up to 10m (on high-reflectivity targets) and remains operational in outdoor environments with ambient light up to 100,000 Lux.
Housed in a compact, lightweight shell (80g), it provides unmatched integration flexibility with built-in RS485, 4-20mA, NPN, and PNP interfaces. Standard IP65 protection ensures durability, with an IP68 option available for submersible or washdown applications.

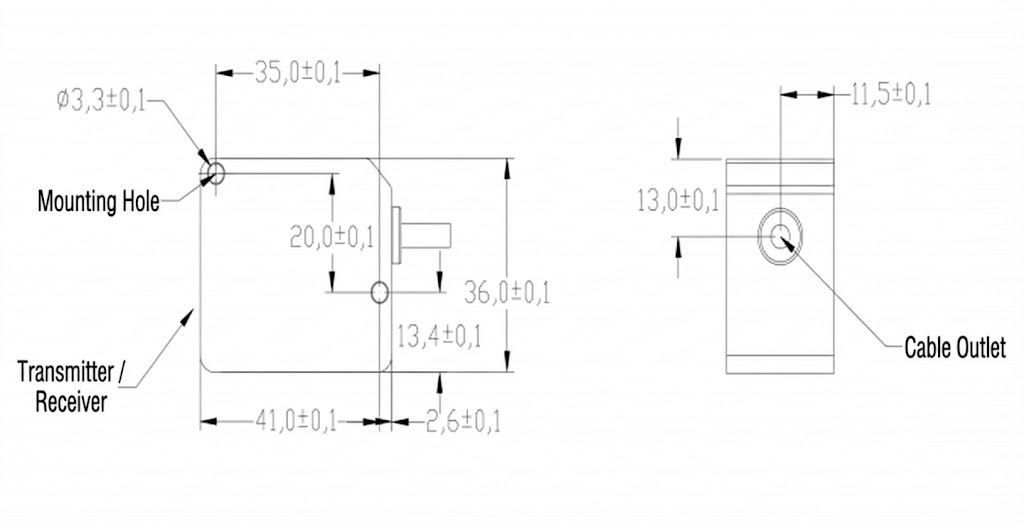

Size and Structure
| Parameter | Specification |
|---|---|
| Measurement Range | 0.05 ... 5m (75% Reflectivity) |
| Measurement Range | 0.05 ... 10m (95% Reflectivity) |
| Repeatability | ± 3 mm |
| Target Capabilities | Natural surfaces, Black objects (Coal/Powder), Semi-transparent objects, Black Glossy/Mirror surfaces. (Excludes clear glass/transparent objects) |
| Ambient Light Immunity | 100,000 Lux (Sunlight operable, approx. 2m range in direct sun) |
| Light Source | 640nm Red Semiconductor Laser (Class II, Eye-safe) |
| Laser Life | > 50,000 hours |
| Response Time | 0.5 ms |
| Measurement Speed | Dynamic Measurement (Suitable for targets moving > 2m/s) |
| Beam Spot Size | 5mm @ 5m |
| Operating Voltage | 9 ... 32 VDC |
| Power Consumption | < 1 W |
| Output Interfaces | RS485, 4-20mA, NPN, PNP |
| Load Impedance | ≤ 500 Ω |
| Ambient Temperature | -20°C ... +60°C |
| Protection Degree | IP65 (Standard) / IP68 (Customizable) |
| Dimensions | 55mm(W) * 28mm(H) * 82mm(L) |
| Weight | 80g |
