KJRF-A01-007 Micrometer Precision Ranging Sensor
✨Features
Product Introduction
The A0 Series Laser Displacement Sensor is a high-precision measurement solution designed for challenging industrial environments. Utilizing advanced triangulation technology with a visible 650nm red laser, it provides fast and accurate distance measurement across ranges from 25mm up to 1200mm.
This series distinguishes itself with its robust optical capability. While traditional lasers struggle with dark surfaces, the A0 Series is specifically engineered to measure low-reflectivity targets such as coal, carbon powder, and black rubber, as well as semi-glossy dark objects.
Packed with versatility, the sensor integrates 4-20mA analog output, NPN/PNP switching, and RS485 Modbus communication into a single compact unit. With a resolution as fine as 1 micron and a response time of 1ms, the A0 Series is the perfect choice for quality control, thickness measurement, and level monitoring in mining, automotive, and automated assembly applications.
Model Selection & Variable Specifications
| Model | A003 | A005 | A010 | A020 | A040 | A070 |
| Measurement Range | 25 - 35 mm | 35 - 65 mm | 65 - 135 mm | 120 - 280 mm | 200 - 600 mm | 200 - 1200 mm |
| Reference Distance | 30 mm | 50 mm | 100 mm | 200 mm | 400 mm | 700 mm |
| Repeatability | 1 μm | 2 μm | 4 μm | 10 μm | 20 μm | 0.2 mm |
| Linearity (F.S.) | ±0.1% | ±0.1% | ±0.1% | ±0.2% | ±0.2% | ±0.6% |
| Spot Size | Φ0.05 mm | Φ0.07 mm | Φ0.15 mm | Φ0.3 mm | Φ0.5 mm | Φ0.8 mm |

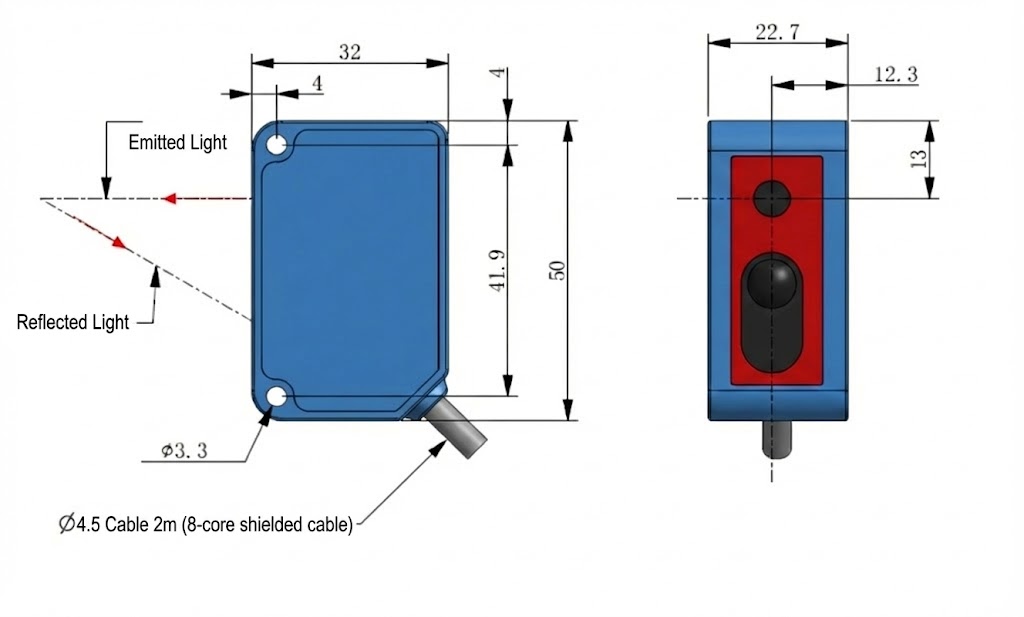

Size and Structure
| Parameter | Specification |
|---|---|
| Measurable Targets | Natural surfaces, Black objects (Coal, Powder), Dark Glossy surfaces* (Non-transparent, non-highly polished mirrors) |
| Light Source | Red Laser 650nm, Class 2 (Power < 1mW) |
| Response Time | 1 ms |
| Ambient Light Immunity | ≤5000 Lux |
| Operating Voltage | 12 ... 24 VDC ±10% |
| Output 1 (Switch) | NPN / PNP (Max 100mA / 30VDC, Residual Voltage <1.8V) |
| Output 2 (Analog) | 4 ... 20 mA (Load Resistance ≤300 Ω) |
| Output 3 (Data) | RS485 (Standard Modbus RTU Protocol) |
| Housing Material | Aluminum Alloy / Plastic (IP65) |
| Dimensions | 50 × 32 × 23 mm |
| Weight | 50g (sensor only) / 80g (with cable) |
| Ambient Temperature | -10°C ... +50°C |
| Ambient Humidity | 35 ... 85% RH (Non-condensing, No icing) |
