DC two-wire sensor KJN6.5-04HC

DC two-wire sensor KJN6.5-04HC

✨Features

✅ Features a miniature Ø6.5mm smooth barrel design, perfect for installation in tight spaces using clamp brackets or set screws where threaded nuts cannot be used.
✅ Despite its small diameter, it offers a powerful 4.0mm detection distance (Non-flush), providing double the range of standard miniature sensors for safer operation.
✅ Engineered with a 2 kHz switching frequency, ensuring precise detection of fast-moving targets in applications like high-speed counting or gear tooth monitoring.
✅ Encased in a robust Stainless Steel housing with an IP67 rating, offering superior resistance to impact and corrosion compared to standard plastic or brass models.
Reference Price
US$1.5-30
Prices vary depending on the configuration; please consult customer service for details.

Product Introduction

This Ø6.5mm Miniature Inductive Sensor is a specialized high-performance component designed for precision automation in confined spaces. Unlike standard threaded sensors, this model features a Ø6.5mm smooth cylindrical housing, making it ideal for mounting via set screws or clamp fixtures in compact machinery, grippers, or robotic arms.

Despite its diminutive size, the sensor delivers an impressive 4.0mm sensing range (Non-flush), allowing for reliable detection of small parts without requiring the sensor to be positioned dangerously close to the target. It is constructed from high-grade Stainless Steel, providing exceptional structural integrity and protection against corrosion in harsh industrial environments.

Performance-wise, the sensor excels with a high switching frequency of 2 kHz, making it perfectly suited for high-speed applications such as rotational speed monitoring or small part counting. Electrically, it utilizes a convenient DC 2-Wire Normally Closed (NC) configuration, simplifying wiring integration. With an IP67 protection rating and wide operating temperature range (-25°C to +75°C), this miniature sensor offers a robust, space-saving solution for critical positioning tasks.

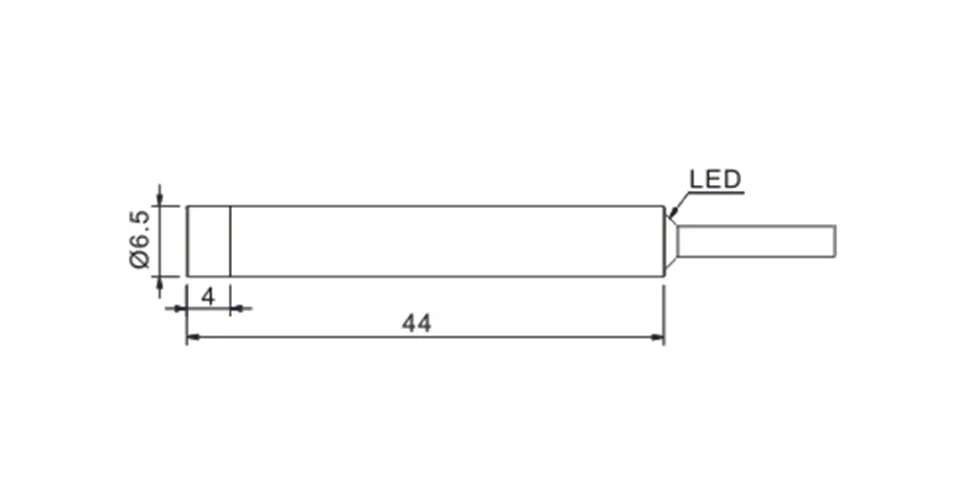

Size and Structure

DC two-wire sensor KJN6.5-04HC

Circuit diagram


Parameter Specification
Sensing Principle Inductive
Housing Style Cylindrical $\phi$6.5 mm (Smooth Barrel)
Mounting Non-flush
Sensing Distance (Sn) 4.0 mm ± 10% (Extended Range)
Operating Voltage 10 ... 30 VDC
Output Function DC 2-Wire, Normally Closed (NC)
Load Current ≤ 120 mA
Switching Frequency 2 kHz (2000 Hz)
Current Consumption 3 ... 100 mA
Residual Voltage < 4.0 V
Leakage Current < 0.8 mA
Hysteresis 15%
Repeat Accuracy 2%
Housing Material Stainless Steel
Sensing Face Material PBT Plastic
Indicator Yellow LED (Operation)
Ambient Temperature -25°C ... +75°C
Protection Degree IP67
Connection 2m / 2-wire Cable
Dimensions Ø6.5 x 44.0 mm
