DC two-wire sensor KJN08-04HC
✨Features
Product Introduction
This Miniature M8 Inductive Sensor is engineered for precision automation tasks where space is at a premium but performance cannot be compromised. Despite its compact size, it features a Non-flush design with an extended 4.0mm sensing range, allowing for reliable detection of small targets without the need for dangerously close mounting.
Distinguishing itself from standard sensors, this model is encased in a robust Stainless Steel housing, providing enhanced protection against impact and corrosion in demanding industrial environments. It is a powerhouse of speed, boasting a 2 kHz switching frequency, which makes it the ideal solution for high-speed counting and rotational speed monitoring applications.
The sensor operates on a standard 10-30 VDC supply and features a DC 2-Wire Normally Closed (NC) output for streamlined installation. With an IP67 rating, short-circuit protection, and a wide operating temperature range (-25°C to +75°C), it delivers consistent, maintenance-free performance in even the tightest machine assemblies.

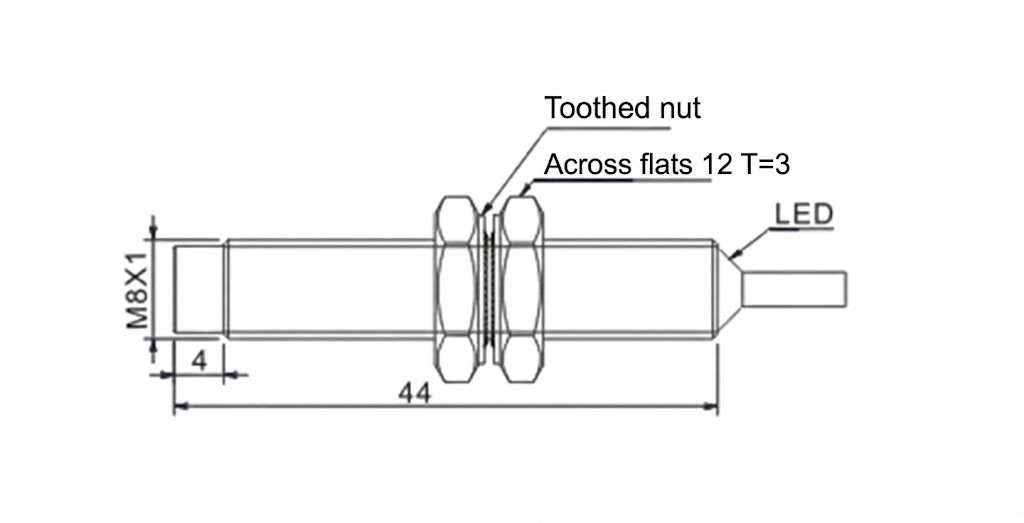

Size and Structure
Circuit diagram
| Parameter | Specification |
|---|---|
| Sensing Principle | Inductive |
| Housing Style | Cylindrical M8 |
| Mounting | Non-flush |
| Sensing Distance (Sn) | 4.0 mm ± 10% (Extended Range) |
| Operating Voltage | 10 ... 30 VDC |
| Output Function | DC 2-Wire, Normally Closed (NC) |
| Load Current | ≤ 120 mA |
| Switching Frequency | 2 kHz (2000 Hz) |
| Current Consumption | 3 ... 100 mA |
| Residual Voltage | < 4.0 V |
| Leakage Current | < 0.8 mA |
| Hysteresis | 15% |
| Repeat Accuracy | 2% |
| Housing Material | Stainless Steel |
| Sensing Face Material | PBT Plastic |
| Indicator | Yellow LED (Operation) |
| Ambient Temperature | -25°C ... +75°C |
| Protection Degree | IP67 |
| Connection | 2m / 2-wire Cable |
| Dimensions | M8 x 44.0 mm |
