DC two-wire sensor KJN18-16HC

Product Introduction

This M18 High-Performance Inductive Sensor is engineered for applications requiring extended sensing capabilities and robust electrical stability. It distinguishes itself with an Ultra-Long Sensing Range of 16mm (Non-flush), which is significantly higher than standard M18 sensors. This extended range allows the sensor to be mounted further from the moving target, reducing the risk of mechanical damage and increasing installation flexibility in confined spaces.

Electrically, the sensor is designed for versatility and resilience. It operates on a wide 10-60 VDC voltage range, making it suitable for heavy-duty power supplies or mobile equipment where voltage fluctuation is common. configured with a DC 2-wire Normally Closed (NC) output, it simplifies wiring by connecting directly in series with the load.

The unit is housed in a durable Nickel-Copper Alloy shell with a high-strength PBT sensing face. Rated IP67, it effectively resists oil, dust, and water ingress. With excellent vibration resistance (10-55Hz) and a broad operating temperature range of -25°C to +75°C, this sensor provides a reliable, long-lasting solution for demanding automation environments such as automotive assembly, conveying systems, and specialized machinery.

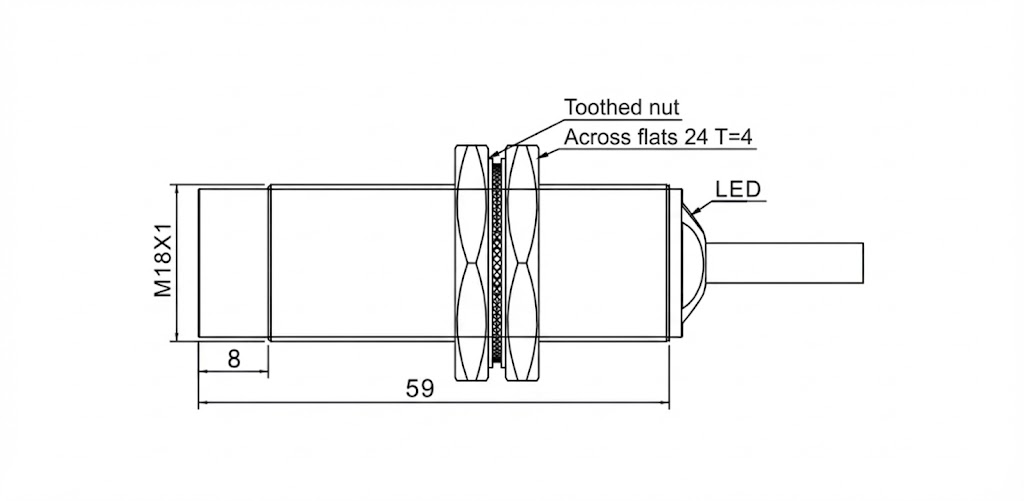

Size and Structure

Circuit diagram
