M30 Plastic Capacitive Proximity Switch
✨Features
Product Introduction
Designed for complex automation tasks where standard inductive sensors fail, this Long-Range Capacitive Proximity Sensor provides reliable detection of virtually any target material, regardless of conductivity. Whether you need to detect liquids inside a non-metallic tank, check for the presence of plastic pellets, or count cardboard packages, this sensor delivers.
With an extended sensing range of 10mm (Flush) and 15mm (Non-flush), it offers the sensitivity required to detect materials through glass or plastic viewing windows. The unit is housed in a rugged PBT plastic shell with an IP67 rating, ensuring resistance to moisture, dust, and chemical exposure in industrial settings. Supporting a switching frequency of 200Hz and operating on a standard 10-30VDC supply, it features comprehensive circuit protection (short-circuit, reverse polarity, surge), making it a durable and versatile solution for the food, packaging, and chemical industries.
Size and Structure

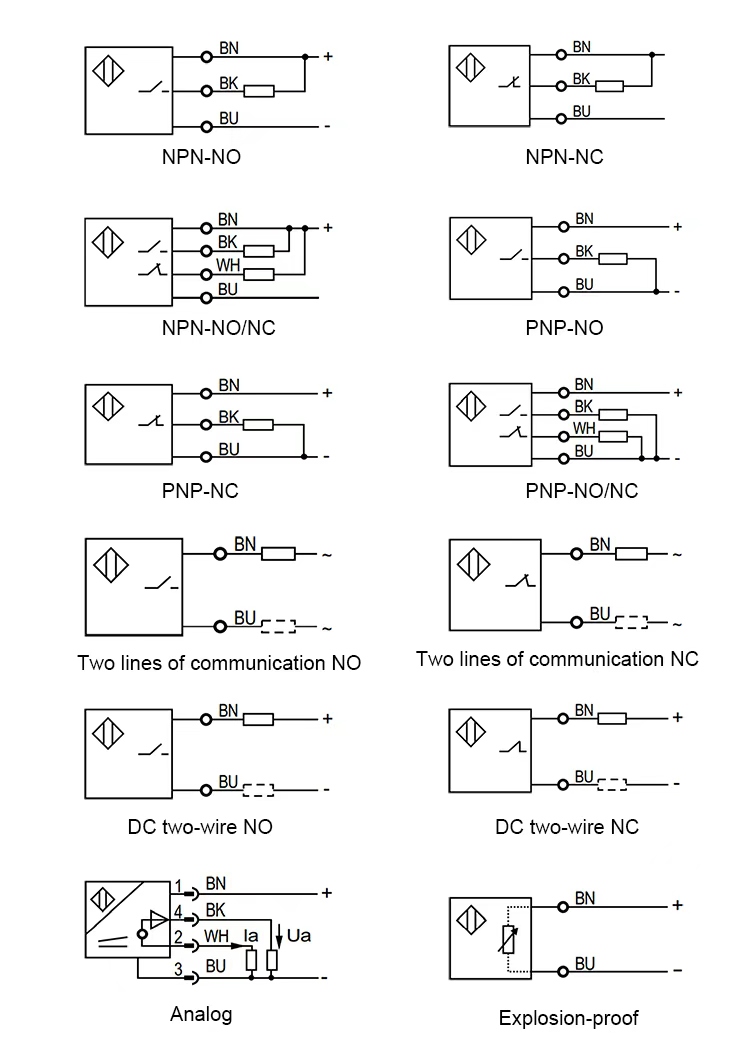

Circuit diagram
| Parameter | Specification |
|---|---|
| Product Type | Capacitive Proximity Sensor |
| Mounting | Flush / Non-flush |
| Sensing Distance (Sn) | Flush: 10mm / Non-flush: 15mm |
| Target Object | Any Object (Metal, Plastic, Liquid, Powder, etc.) |
| Operating Voltage | 10 ... 30 VDC |
| Load Current | ≤ 200 mA |
| Circuit Protection | Short-circuit / Reverse Polarity / Surge Protection |
| Switching Frequency | 200 Hz |
| Housing Material | PBT Plastic |
| Ambient Temperature | -25°C ... +70°C |
| Output Type | NPN / PNP |
| Protection Degree | IP67 |
| Connection | 2m PVC Cable |
