80X80X26 square proximity switch
✨Features
✅
Offers an impressive 50mm detection distance (Non-flush), ideal for large-scale machinery and wide-gap monitoring.
✅
Available in NPN, PNP, and DC 2-wire configurations to match diverse control system requirements.
✅
Rugged PBT housing with IP67 protection ensures stability in harsh industrial environments (-25°C to +70°C).
✅
Built-in protection against short circuits, reverse polarity, and surges prevents damage and ensures long service life.
Reference Price
US$1.5-50
Prices vary depending on the configuration; please consult customer service for details.
Product Introduction
This high-performance inductive proximity sensor is engineered for heavy-duty industrial applications requiring an ultra-long sensing distance of 50mm. Its Non-flush mounting design allows for extended detection ranges, making it perfect for monitoring large moving parts or conveyors where close proximity is not possible. Enclosed in a robust PBT plastic housing with an IP67 rating, it delivers reliable performance even in harsh environments with dust and moisture. The sensor offers maximum application flexibility with NPN, PNP, and DC 2-wire output options, supported by comprehensive circuit protection (short-circuit, reverse polarity, surge) and a standard 2-meter PVC cable for easy installation.

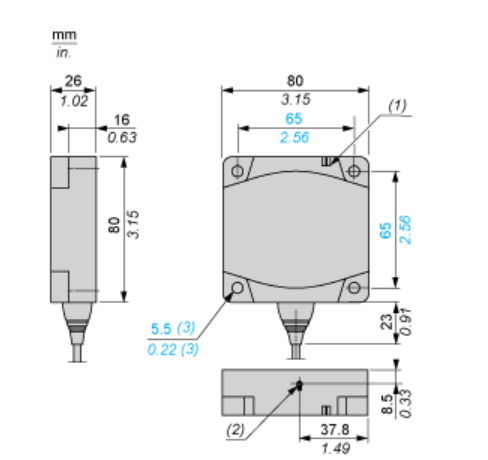

Size and Structure
Circuit diagram
| Parameter | Specification |
|---|---|
| Mounting | Non-flush |
| Sensing Distance (Sn) | 50mm |
| Operating Voltage | 10 ... 30 VDC |
| Load Current | ≤ 200 mA |
| Circuit Protection | Short-circuit / Reverse Polarity / Surge Protection |
| Switching Frequency | 300 Hz |
| Housing Material | PBT Plastic |
| Ambient Temperature | -25°C ... +70°C |
| Output Type | NPN / PNP / DC 2-wire |
| Protection Degree | IP67 |
| Connection | 2m PVC Cable |
