40X40X120 square proximity switch
✨Features
✅
Features an internal terminal block for direct field wiring, eliminating the need for pre-molded cables and simplifying replacement.
✅
Provides reliable long-distance sensing of 15mm (Flush) and 20mm (Non-flush) for demanding applications.
✅
Supports NPN, PNP, and DC 2-wire logic, offering broad compatibility with various industrial control systems.
✅
The durable PBT housing with IP67 rating ensures consistent operation in harsh conditions from -25°C to +70°C.
Reference Price
US$1.5-50
Prices vary depending on the configuration; please consult customer service for details.
Product Introduction
Designed for flexibility and ease of maintenance, this inductive proximity sensor is distinguished by its internal terminal block connection, allowing for direct wiring and customizable cable lengths on-site. This feature makes it ideal for applications where standard cable lengths are insufficient or where quick replacement is critical. The sensor offers impressive sensing distances of 15mm (Flush) and 20mm (Non-flush), housed in a rugged PBT plastic shell with an IP67 rating for superior resistance to industrial environments (-25°C to +70°C). With support for NPN, PNP, and DC 2-wire outputs and full circuit protection, it provides a versatile and durable solution for heavy-duty automation requirements.

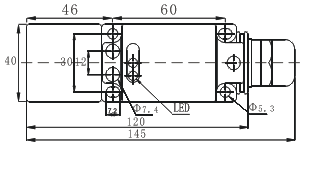

Size and Structure
Circuit diagram
| Parameter | Specification |
|---|---|
| Mounting | Flush / Non-flush |
| Sensing Distance (Sn) | Flush: 15mm / Non-flush: 20mm |
| Operating Voltage | 10 ... 30 VDC |
| Load Current | ≤ 200 mA |
| Circuit Protection | Short-circuit / Reverse Polarity / Surge Protection |
| Switching Frequency | Flush: 500 Hz / Non-flush: 300 Hz |
| Housing Material | PBT Plastic |
| Ambient Temperature | -25°C ... +70°C |
| Output Type | NPN / PNP / DC 2-wire |
| Protection Degree | IP67 |
| Connection | Internal Terminal Block |
