25X25X39 square proximity switch
✨Features
✅
Extended Sensing Range: Offers enhanced detection distances of 8mm (Flush) and 10mm (Non-flush) for flexible application.
✅
Durable IP67 Design: Rugged PBT housing withstands harsh industrial environments and temperatures from -25°C to +70°C.
✅
Full Circuit Protection: Integrated short-circuit, reverse polarity, and surge protection for maximum system safety.
✅
Wide Compatibility: 10-30VDC operating voltage with NPN/PNP output options suits most automation controllers.
Reference Price
US$1.5-30
Prices vary depending on the configuration; please consult customer service for details.
Product Introduction
Designed for demanding industrial applications, this inductive proximity sensor features a robust PBT plastic housing with an IP67 protection rating, ensuring reliable performance in harsh conditions (-25°C to +70°C). It offers an extended sensing range with 8mm (Flush) and 10mm (Non-flush) options, making it ideal for applications requiring greater detection distances. The sensor ensures operational safety with comprehensive built-in protection against short circuits, reverse polarity, and voltage surges. With a high switching frequency of up to 800Hz and a universal 10-30VDC operating voltage, it provides a stable, long-lasting solution for precise positioning and counting tasks.

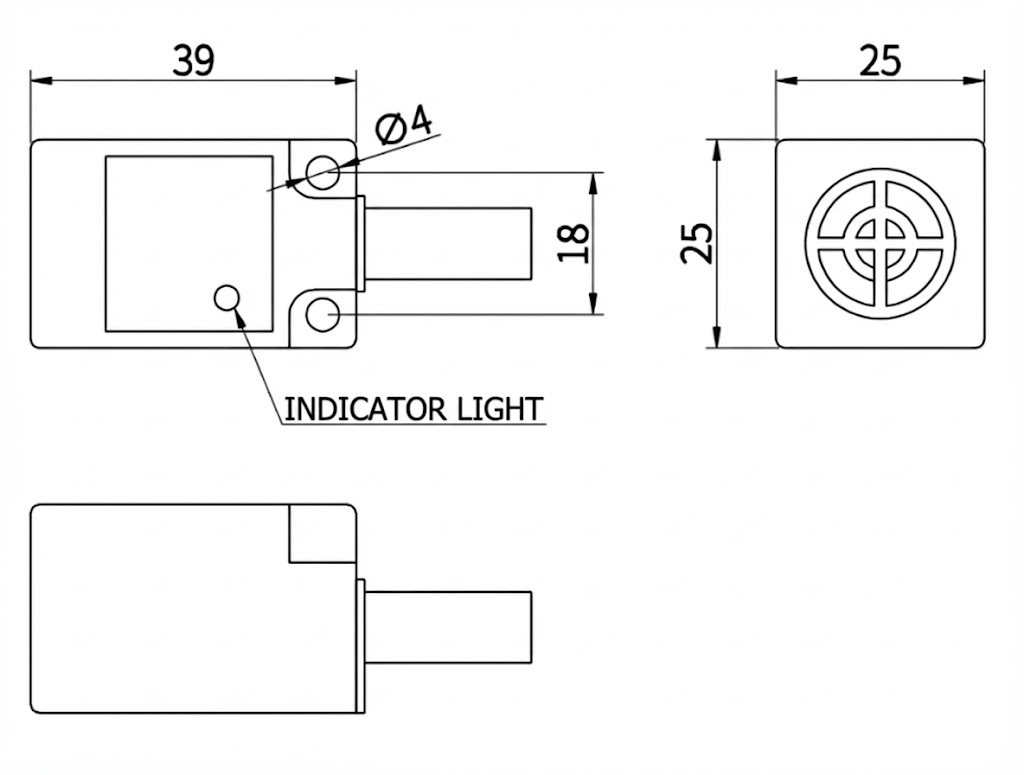

Size and Structure
Circuit diagram
| Parameter | Specification |
|---|---|
| Mounting | Flush / Non-flush |
| Sensing Distance (Sn) | Flush: 8mm / Non-flush: 10mm |
| Operating Voltage | 10 ... 30 VDC |
| Load Current | ≤ 200 mA |
| Circuit Protection | Short-circuit / Reverse Polarity / Surge Protection |
| Switching Frequency | Flush: 800 Hz / Non-flush: 500 Hz |
| Housing Material | PBT Plastic |
| Ambient Temperature | -25°C ... +70°C |
| Output Type | NPN / PNP |
| Protection Degree | IP67 |
| Connection | 2m PVC Cable |
