12x16x28 square proximity switch
✨Features
Product Introduction
1. Cost-Effective & Corrosion Resistant
PBT Plastic Housing: Constructed from durable PBT engineering plastic. Unlike metal housings, this material offers excellent resistance to chemicals, acids, and alkalis, making it ideal for harsh chemical environments or food processing applications.
Economical Choice: Offers the same reliable detection performance as metal versions but at a more competitive price point.
2. Integrated Cable for Easy Wiring
Pre-wired Design: Comes with a standard 2-meter PVC cable, eliminating the need to purchase separate connector cables and simplifying supply chain management.
Secure Connection: The integrated cable design removes the connection interface, reducing the risk of signal loss due to loose connectors in vibrating machinery.
3. Reliable Industrial Performance
Standard Specs: Features standard sensing ranges of 2mm (Flush) and 4mm (Non-flush) with high switching frequencies (up to 1500Hz).
Full Protection: Rated IP67 and equipped with Short-circuit, Reverse Polarity, and Surge Protection, ensuring longevity and safety.

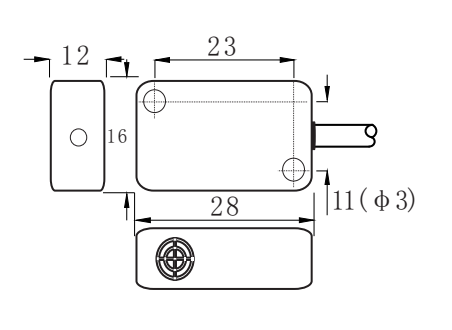

Size and Structure
Circuit diagram
| Parameter | Specification |
|---|---|
| Housing Material | PBT Plastic |
| Mounting | Flush / Non-flush |
| Sensing Distance | Flush: 2mm / Non-flush: 4mm |
| Operating Voltage | 10-30VDC |
| Max Load Current | ≤200mA |
| Switching Frequency | Flush: 1500Hz / Non-flush: 1000Hz |
| Output Mode | NPN / PNP |
| Circuit Protection | Short-circuit, Reverse Polarity, Surge |
| Ambient Temperature | -25°C to +70°C |
| Protection Degree | IP67 |
| Connection Type | 2m PVC Cable |
