M18 Inductive Proximity Sensor - NPN NO/NC (Non-Flush)
✨Features
Product Introduction
The M18 Inductive Proximity Sensor (NPN Non-Flush) is a durable mid-sized sensing solution designed for heavy-duty industrial automation. Its M18 threaded body is a standard in the industry, making it easy to retrofit into existing conveyor systems, packaging lines, and machine tools.
This specific series features a Non-Flush mounting configuration, offering extended sensing distances of 8mm or 12mm. While this requires clear space around the sensor head during installation, it provides a crucial advantage in detecting larger or irregular objects. Housed in a Nickel-Copper Alloy body with a PBT sensing face, it is built to last. With a switching frequency of 150 Hz and a 10-30V DC operating range, it ensures stable and accurate position feedback for general-purpose automation tasks.

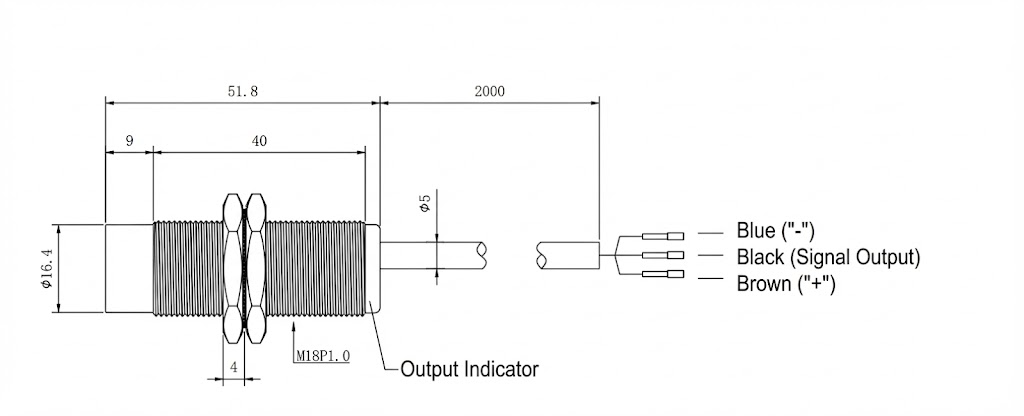

Size and Structure
| Parameter | Specification |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Housing Size | M18 (Threaded Cylinder) |
| Mounting | Non-Flush (Non-Shielded) |
| Sensing Distance (Sn) | 8 mm / 12 mm (Selectable Models) |
| Tolerance | +/- 10% |
| Output Configuration | NPN (NO / NC Selectable) |
| Operating Voltage | 10 ... 30 VDC |
| Ripple | < 10% |
| Voltage Drop | < 1.5 V |
| Load Current | 200 mA |
| No-Load Current | < 10 mA |
| Leakage Current | < 0.01 mA |
| Switching Frequency | 150 Hz |
| Hysteresis | < 15% (Sr) |
| Repeat Accuracy | < 3.0% (Sr) |
| Housing Material | Nickel-Copper Alloy |
| Sensing Face Material | PBT |
| Ambient Temperature | -25 C ... +70 C |
| Protection Degree | IP67 |
