M12 Inductive Proximity Sensor - NPN NO/NC (Non-Flush)
✨Features
✅
Extended Sensing Range: The Non-Flush (Non-Shielded) design utilizes an exposed coil to achieve longer detection distances (4mm or 8mm) compared to flush-mounted equivalents, making it ideal for detecting targets that cannot pass close to the sensor face.
✅
High Load Capacity: Unlike smaller sensors, this M12 unit supports a load current of up to 200 mA, allowing it to directly drive larger relays or indicators without intermediate switching.
✅
Durable Metal Housing: Constructed from a robust Nickel-Copper Alloy, providing excellent mechanical strength and corrosion resistance superior to standard plastic sensors.
✅
Fast Response: Features a 1000 Hz switching frequency, ensuring accurate counting and detection of fast-moving objects on conveyor systems.
Reference Price
US$1.5~100
Prices vary depending on the configuration; please consult customer service for details.
Product Introduction
The M12 Inductive Proximity Sensor (NPN Non-Flush) is a robust industrial sensor designed for applications requiring reliable detection at a slightly extended distance. With its Non-Flush head design, it offers sensing ranges of 4mm or 8mm, providing a larger margin of error for target positioning.
Housed in a rugged Nickel-Copper Alloy body with a durable PBT sensing face, this sensor is built to withstand harsh factory environments with an IP67 rating. It operates on 10-30 VDC and delivers a high-capacity 200 mA NPN output. Whether used for position verification, limit switching, or pulse counting, the M12 Non-Flush series ensures consistent performance in automation, packaging, and material handling systems.

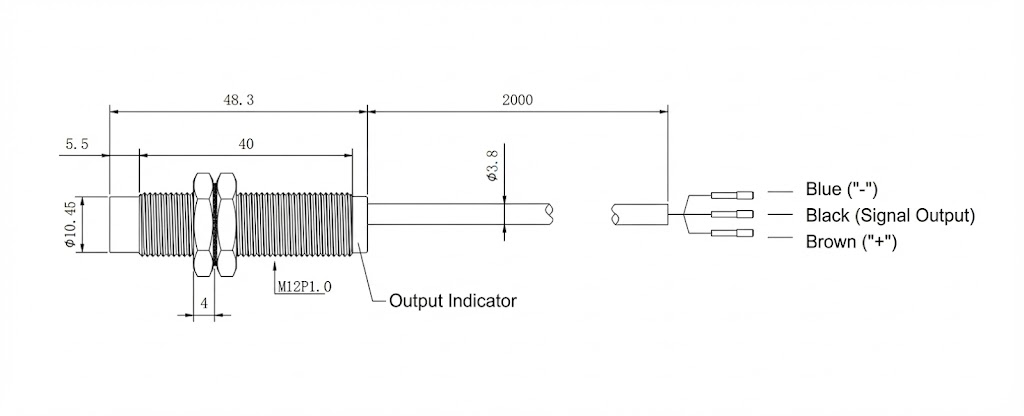

Size and Structure
| Parameter | Specification |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Housing Size | M12 (Threaded Cylinder) |
| Mounting | Non-Flush (Non-Shielded) |
| Sensing Distance (Sn) | 4 mm / 8 mm (Selectable Models) |
| Tolerance | +/- 10% |
| Output Configuration | NPN (NO / NC Selectable) |
| Operating Voltage | 10 ... 30 VDC |
| Ripple | < 10% |
| Voltage Drop | < 1.5 V |
| Load Current | 200 mA |
| No-Load Current | < 10 mA |
| Leakage Current | < 0.01 mA |
| Switching Frequency | 1000 Hz |
| Hysteresis | < 15% (Sr) |
| Repeat Accuracy | < 3.0% (Sr) |
| Housing Material | Nickel-Copper Alloy |
| Sensing Face Material | PBT |
| Ambient Temperature | -25 C ... +70 C |
| Protection Degree | IP67 |
