M8 Inductive Proximity Sensor - NPN NO/NC (Flush)

✨Features

✅ Versatile Sensing Ranges: Available in three flush-mount sensing distances: Standard (1mm), Enhanced (2mm), and Extended (4mm), providing flexibility for different detection gaps within the same M8 footprint.

✅ Robust Construction: Features a durable Stainless Steel threaded housing and a chemical-resistant PBT sensing face, ensuring longevity in harsh industrial conditions.

✅ High-Speed Logic Integration: With a switching frequency of 1000 Hz and extremely low leakage current (< 0.01 mA), it integrates seamlessly with PLCs and high-speed counters.

✅ Industrial Protection: Rated IP67, fully protected against dust ingress and immersion in water, suitable for wet or oily environments between -25 C and +70 C.

Reference Price

US$1.5~100

Prices vary depending on the configuration; please consult customer service for details.

Product Introduction

The M8 Inductive Proximity Sensor (NPN Flush) is a versatile and compact sensing solution designed for space-constrained automation applications. Its Flush (Shielded) mounting design allows it to be embedded in metal without interference, making it ideal for precision tooling and robotic assembly.

This series offers a choice of sensing ranges—1mm, 2mm, or an impressive 4mm—within the standard M8 threaded body, allowing users to select the optimal distance for their specific clearance requirements. Engineered with a Stainless Steel body and operating on 10-30 VDC, it delivers reliable NPN output (Normally Open or Normally Closed) with high repeatability and fast response, ensuring consistent performance in packaging, conveying, and machine tool sectors.

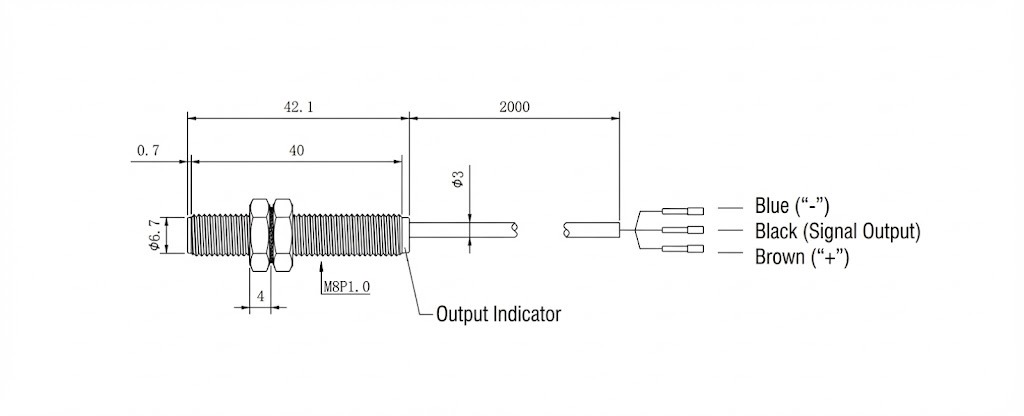

Size and Structure

M8 Inductive Proximity Sensor - NPN NO/NC (Flush)

Parameter	Specification
Product Type	Inductive Proximity Sensor
Housing Size	M8 (Threaded Cylinder)
Mounting	Flush (Shielded)
Sensing Distance (Sn)	1 mm / 2 mm / 4 mm (Selectable Models)
Tolerance	+/- 10%
Output Configuration	NPN (NO / NC Selectable)
Operating Voltage	10 ... 30 VDC
Ripple	< 10%
Voltage Drop	< 1.5 V
Load Current	100 mA
No-Load Current	< 10 mA
Leakage Current	< 0.01 mA
Switching Frequency	1000 Hz
Hysteresis	< 15% (Sr)
Repeat Accuracy	< 3.0% (Sr)
Housing Material	Stainless Steel
Sensing Face Material	PBT
Ambient Temperature	-25 C ... +70 C
Protection Degree	IP67
