M8 Inductive Proximity Sensor - NPN NO/NC (Non-Flush)
✨Features
✅
Standard M8 Threaded Design
✅
Sensing Distance (Sn):1mm/2mm/4mm
✅
High-Speed Switching
✅
Industrial Reliability
Reference Price
US$1.5~100
Prices vary depending on the configuration; please consult customer service for details.
Product Introduction
The M8 Inductive Proximity Sensor (NPN NO) is a durable and compact sensing solution for automated machinery. With its Non-Flush (Non-Shielded) construction, it provides a sensing distance of 2mm for metallic targets.
Built to withstand harsh environments, the sensor features a Stainless Steel body and a high-strength PBT sensing face, sealed to IP67 standards. It operates on a wide voltage range of 10-30 VDC and delivers a fast switching response of 1000 Hz. Ideally suited for limited-space applications, this M8 sensor ensures reliable position detection in packaging machines, assembly lines, and material handling systems.

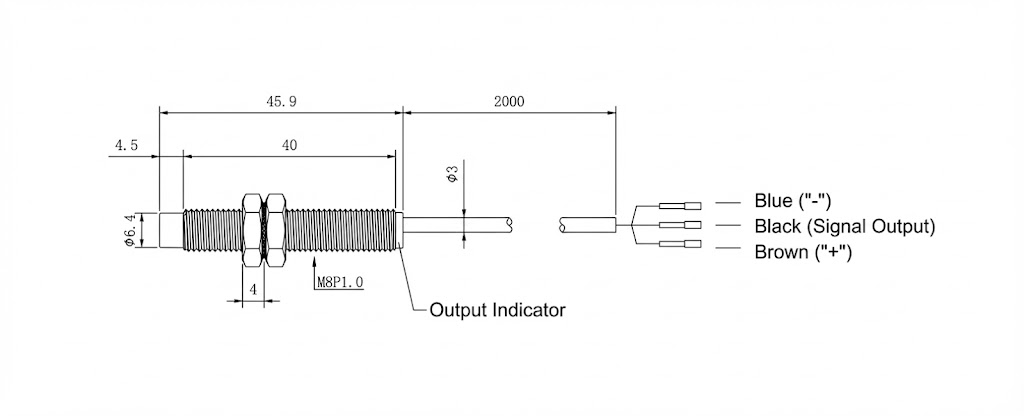

Size and Structure
| Parameter | Specification |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Housing Size | M8 (Threaded Cylinder) |
| Mounting | Non-Flush (Non-Shielded) |
| Sensing Distance (Sn) | 1/2/4 mm (+/- 10%) |
| Output Configuration | NPN (NO / NC Selectable) |
| Operating Voltage | 10 ... 30 VDC |
| Ripple | < 10% |
| Voltage Drop | < 1.5 V |
| Load Current | 100 mA |
| No-Load Current | < 10 mA |
| Leakage Current | < 0.01 mA |
| Switching Frequency | 1000 Hz |
| Hysteresis | < 15% (Sr) |
| Repeat Accuracy | < 3.0% (Sr) |
| Housing Material | Stainless Steel |
| Sensing Face Material | PBT (Polybutylene Terephthalate) |
| Ambient Temperature | -25 C ... +70 C |
| Protection Degree | IP67 |
