phi 4mm Miniature Inductive Proximity Sensor - NPN Flush
✨Features
✅
Compact Miniature Housing
✅
Fast & Precise
✅
Rugged Durability
✅
Stable Operation
Reference Price
US$1.5~10
Prices vary depending on the configuration; please consult customer service for details.
Product Introduction
The phi 4mm Miniature Inductive Proximity Sensor is a robust and compact sensing solution designed for precision automation. With its Stainless Steel housing and Flush (Shielded) mounting configuration, it offers exceptional durability and easy installation in tight machinery.
Despite its small size, this sensor provides a reliable 1.0mm sensing distance for metallic targets. It is engineered for high-speed performance, featuring a 0.1ms response time and 1kHz switching frequency. Rated IP67 for water and dust resistance, it is perfectly suited for applications such as small conveyor systems, robotic arm end-effectors, and electronic assembly equipment where space is at a premium but reliability is non-negotiable.

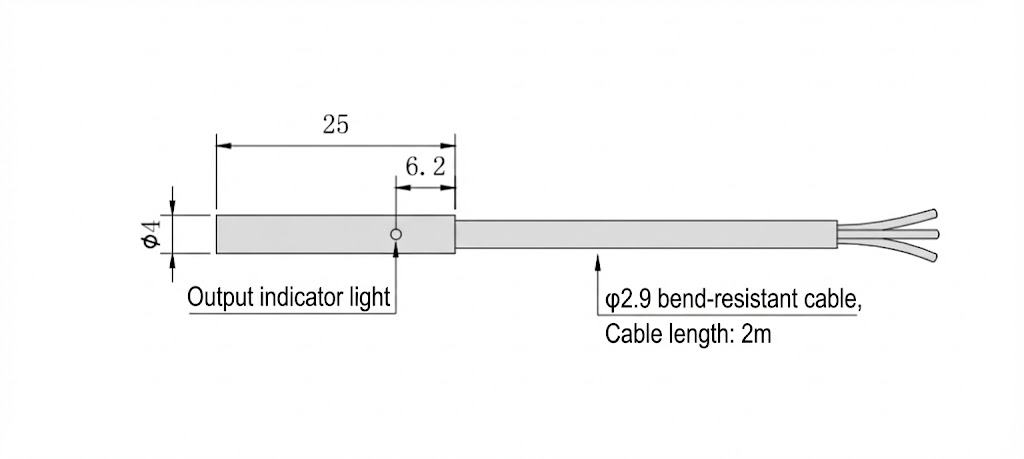

Size and Structure
| Parameter | Specification |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Housing Size | Diameter 4 mm (Smooth Barrel) |
| Mounting | Flush (Shielded) |
| Sensing Distance (Sn) | 1.0 mm / 1.5 mm |
| Output Type | NPN |
| Operating Voltage | 10 ... 30 VDC |
| Ripple | < 10% |
| Voltage Drop | < 1.5 V |
| Load Current | 100 mA |
| No-Load Current | < 10 mA |
| Leakage Current | < 0.01 mA |
| Switching Frequency | 1000 Hz |
| Response Time | 0.1 ms |
| Hysteresis | < 15% (Sr) |
| Repeat Accuracy | < 5.0% (Sr) |
| Housing Material | Stainless Steel |
| Sensing Face Material | PA66 (Nylon) |
| Ambient Temperature | -25 C ... +70 C |
| Protection Degree | IP67 |
