phi 3mm Ultra-Miniature Inductive Proximity Sensor - NPN Flush
✨Features
Product Introduction
The phi 3mm Ultra-Miniature Inductive Proximity Sensor is a high-precision sensing solution engineered for extremely tight spaces where standard sensors cannot fit. Housing a precision electromagnetic coil within a rugged Stainless Steel body, it provides a stable detection range of 0.8mm for metallic targets.
Designed for high-speed automation, this sensor features a rapid response time of 0.1ms and a switching frequency of 1000 Hz, ensuring accurate position feedback in fast-moving machinery. With Flush (Shielded) mounting and an IP67 waterproof rating, it delivers reliable NPN signal output even in harsh industrial environments. It is the ideal choice for miniaturized applications such as robotic grippers, micro-assembly lines, and semiconductor manufacturing equipment.

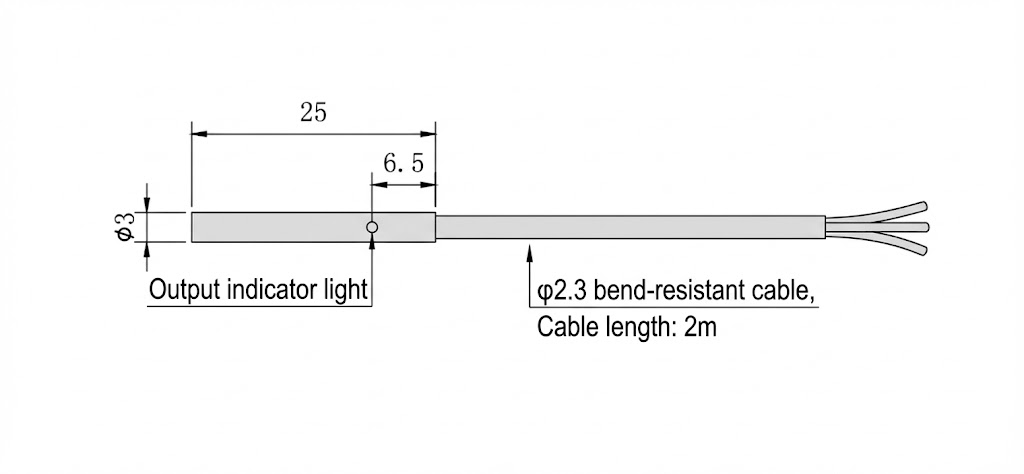

Size and Structure
| Parameter | Specification |
|---|---|
| Product Type | Inductive Proximity Sensor |
| Housing Size | Diameter 3 mm (Smooth Barrel) |
| Mounting | Flush (Shielded) |
| Sensing Distance (Sn) | 0.8 mm/1 mm |
| Output Type | NPN |
| Operating Voltage | 10 ... 30 VDC |
| Ripple | < 10% |
| Voltage Drop | < 1.5 V |
| Load Current | 100 mA |
| No-Load Current | < 10 mA |
| Leakage Current | < 0.01 mA |
| Switching Frequency | 1000 Hz |
| Response Time | 0.1 ms |
| Hysteresis | < 15% (Sr) |
| Repeat Accuracy | < 5.0% (Sr) |
| Housing Material | Stainless Steel |
| Sensing Face Material | PA66 (Nylon) |
| Ambient Temperature | -25 C ... +70 C |
| Protection Degree | IP67 |
