General-purpose photoelectric sensors (through-beam/reflective/diffuse)
✨Features
Series Overview & Configurations
Instead of specific part numbers, the series allows you to select configurations based on the following options:
Sensing Modes & Ranges:
Through-beam: 5 m or 20 m
Retro-reflective: 0.1~2 m or 0.1~4 m
Diffuse-reflective: 100 mm, 300 mm, or 1 m
Output Types: NPN or PNP (Open Collector)
Connection Types: Pre-wired Cable (2m) or M12 Pigtail Connector
Operation Mode: Light ON / Dark ON (Selectable via knob)
Product Introduction
The CPY Photoelectric Sensor Series offers a cost-effective and reliable solution for industrial object detection. Housed in a durable ABS shell with a Polycarbonate (PC) lens, these sensors are designed to withstand vibration and general factory environments (rated IP65).
Whether you need to detect boxes on a conveyor (Diffuse), monitor a wide gate (Through-beam), or detect shiny objects using a polarized reflector (Retro-reflective), the CPY series provides a model for the task. The sensors include comprehensive circuit protection and clear LED status indicators (Red for action, Green for power/stability) to simplify maintenance and troubleshooting.

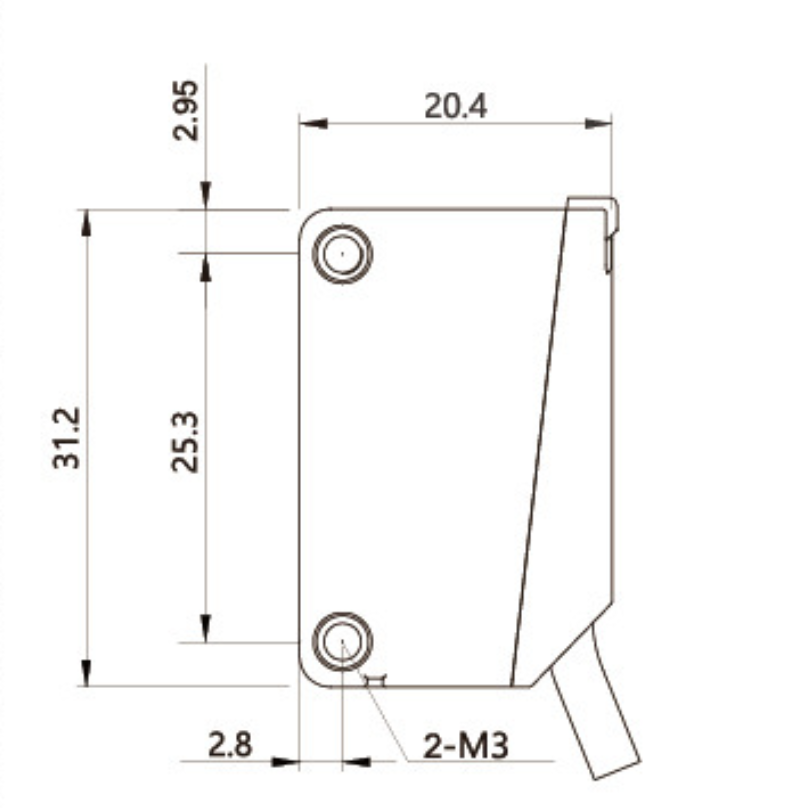

Size and Structure
Circuit diagram
| Parameter | Specification |
|---|---|
| Light Source | Red LED (617nm) |
| Operating Voltage | 12 ... 24 VDC (Ripple <10%) / Range: 10-30 VDC |
| Current Consumption 1 | Through-beam: Emitter < 20mA, Receiver < 25mA |
| Current Consumption 2 | Others: < 25mA |
| Control Output 1 | NPN or PNP (Factory Selectable) |
| Control Output 2 | Max Load: 100mA / Residual Voltage < 3V |
| Response Time | 1 ms |
| Sensitivity Adjustment | Single-turn Potentiometer (Knob) |
| Indicators | Action: Red LED / Stability: Green LED |
| Protection Circuits | Reverse Polarity, Output Overcurrent, Short-circuit Protection |
| Standard Target 1 | Through-beam: Opaque >10mm |
| Standard Target 2 | Retro-reflective: Opaque >75mm |
| Standard Target 3 | Diffuse: White Paper 300x300mm |
| Hysteresis | Diffuse models only: < 20% of sensing distance |
| Directional Angle | Min. 2 degrees |
| Ambient Light | Incandescent: < 3000 lx / Sunlight: < 10000 lx |
| Ambient Temperature | -25 C ... +55 C (Storage: -25 ... +65 C) |
| Vibration/Shock | 10-55Hz (1.5mm Amp) / 300m/s^2 (approx 30G) |
| Protection Degree | IP65 (IEC Standard) |
| Housing Material | Case: ABS / Lens: PC / Cable: PVC |
| Weight | Through-beam: ~65g / Others: ~35g |
FAQ
Q：What is the difference between "Light ON" and "Dark ON"?
A：Light ON: The output turns ON when the sensor receives light. (e.g., In Diffuse mode, when an object is in front of the sensor).
Dark ON: The output turns ON when the sensor does not receive light. (e.g., In Through-beam mode, when an object blocks the beam).
This series allows you to select either mode via a knob.
Q：This datasheet says IP65. Can I use it in wash-down areas?
A：IP65 means the sensor is dust-tight and protected against low-pressure water jets from any direction. It is suitable for general factory environments where it might get splashed, but it is not recommended for high-pressure wash-downs (IP69K) or submersion (IP67/IP68).
Q：Why does the Diffuse model distance vary (100mm vs 1m)?
A：Diffuse sensors rely on light reflecting off the object itself.
100mm / 300mm versions are usually "Short Range" or "Background Suppression" types, good for precise detection of small parts.
1m versions are "Long Range" diffuse, good for detecting larger boxes or pallets.
Note: The actual distance depends on the color of the target. Darker objects absorb light and reduce the range.
