φ6.5 Miniature Magnetic Proximity Sensor - NPN/PNP NO/NC (Smooth Barrel)
✨Features
Product Introduction
The phi 6.5mm Miniature Magnetic Sensor Series is a robust position detection solution designed for embedded industrial applications. Featuring a Smooth Barrel (Non-threaded) design with a standard 6.5mm diameter, it is easily installed into pre-drilled holes in machine bases, grippers, or pneumatic cylinder housings.
Unlike standard inductive sensors, this device detects magnetic fields, allowing it to sense targets through non-ferrous walls (such as aluminum or plastic) with a sensing range of 10mm. With comprehensive protection against short-circuits and reverse polarity, and a high switching frequency of 1000 Hz, it provides reliable, high-speed feedback for automated assembly lines and robotic systems.

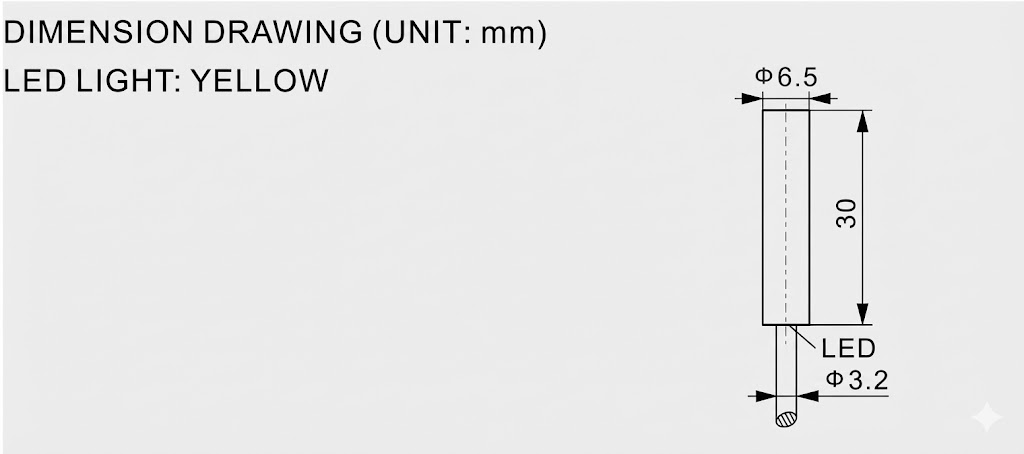

Size and Structure
Circuit diagram
| Parameter | Specification |
|---|---|
| Product Type | Magnetic Proximity Sensor (Hall Effect) |
| Housing Structure | Cylindrical Smooth Barrel (Non-threaded) |
| Dimensions | Diameter 6.5 mm x Length 30 mm |
| Mounting | Flush (Embedded) |
| Sensing Distance (Sn) | 10 mm (Detected at N or S pole) |
| Standard Target | Magnet: Diameter 5 x 3 mm (NdFeB) |
| Operating Voltage | 10 ... 30 VDC |
| Current Consumption | <= 15 mA |
| Load Current | <= 200 mA |
| Voltage Drop | <= 2 V |
| Switching Frequency | 1000 Hz |
| Hysteresis | 1 ... 15% (of Sr) |
| Repeat Accuracy | <= +/- 5% (of Sr) |
| Protection Circuit | Short-circuit, Reverse Polarity, Surge Protection |
| Connection | Cable 2m (PUR Material), Diameter 3.2mm |
| Housing Material | Stainless Steel |
| Sensing Face | PBT |
| Indicator | Yellow LED |
| Ambient Temperature | -25 C ... +80 C |
| Protection Degree | IP67 |
| Weight | 35g |
FAQ
Q：How do I mount this 6.5mm smooth sensor?
A：A: Since it has no threads, this sensor is designed for "drop-in" mounting. You typically drill a 6.5mm hole (or slightly larger, e.g., 6.6mm) in your machine bracket. Secure the sensor using a set screw (grub screw) from the side, a split-clamp bracket, or industrial adhesive. This allows for a flush, low-profile fit.
Q：Will this sensor detect steel or aluminum parts?
A：No. This is a Magnetic Hall Sensor. It only detects magnetic fields. You must attach a magnet (like the standard phi 5x3mm NdFeB magnet) to the object you want to detect. It will not trigger on plain metal.
Q：I need to replace a sensor that sends a signal when the magnet is NOT present. Which model should I choose?
A：You likely need a Normally Closed (NC) model.
