KJGL-A1 High Temperature Laser Rangefinder

Product Description

Measurement of:

High-temperature molten steel, molten aluminum level, high-temperature molten glass level and height measurement

High-temperature steel billet, aluminum ingot thickness measurement and distance measurement, anode height measurement

Accuracy up to 0.3 mm

Communication interfaces include 422, 232, 485, 4-20mA, etc.

Product Advantages

1. Specially designed for high-temperature test objects such as molten steel, molten aluminum, and steel ladles, effectively filtering multi-band light interference from molten iron, ensuring stable accuracy and long-term measurement stability even when measuring high-temperature objects.

2. Extremely low reflectivity design allows for effective detection of low-reflectivity objects such as slag and reddish-brown porous materials, significantly improving the success rate of measurements on various object types.

3. Unique high-temperature operating environment design, employing high-temperature resistant lasers, photosensitive components, and temperature control devices, achieving low temperature drift and long service life, ensuring long-term stable operation in environments exceeding 80 degrees Celsius.

4. A perfect replacement for imported products, achieving domestic substitution.

Can measure molten steel and aluminum in reddish-brown or bright silver states, and can operate stably in high-temperature environments up to 85℃.

Use cases

Billet heating furnace, slab heating furnace, hot-rolled strip coiling, hot-rolled strip post-processing line, aluminum water tank level monitoring, etc.

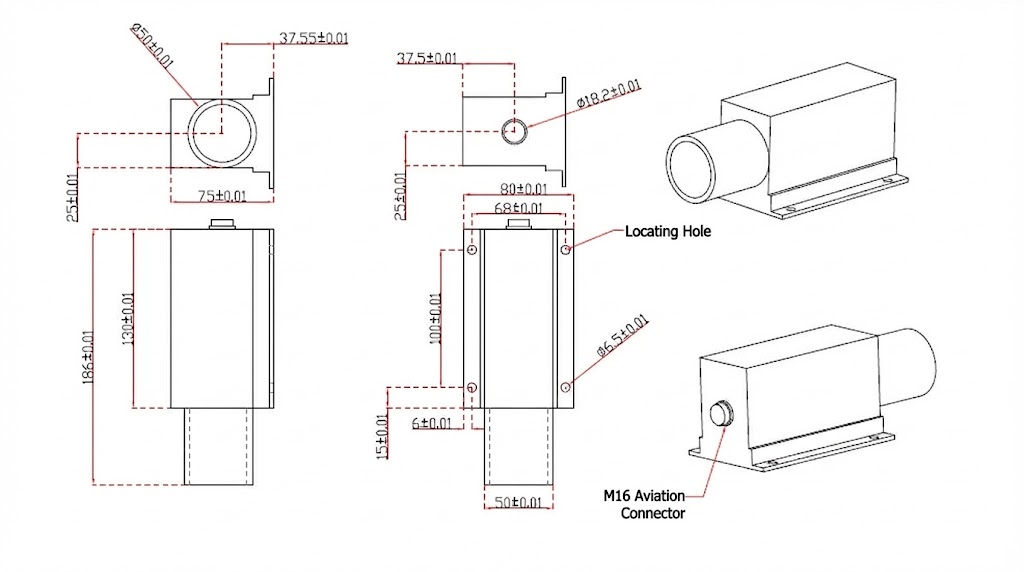

Size and Structure
