STW-HIB500C DC current sensor （Analog output）
✨Features
Product Introduction
This CAN-Bus High-Precision Current Sensor is engineered for advanced power management applications where accuracy and digital connectivity are paramount. Unlike standard analog sensors, this unit features an integrated CAN Bus interface, allowing it to transmit precise current data directly to a vehicle ECU, Battery Management System (BMS), or industrial controller without signal degradation.
The sensor utilizes a Through-hole design with a 24 mm aperture, accommodating cables for measurements up to 500 A (customizable ranges available). It operates on a robust 9-16 VDC power supply, compatible with standard automotive and industrial voltage rails. With a high accuracy rating of 0.1%, it is an ideal solution for electric vehicle (EV) charging stations, energy storage systems, and precision motor control, providing reliable data in a compact, easy-to-install package.

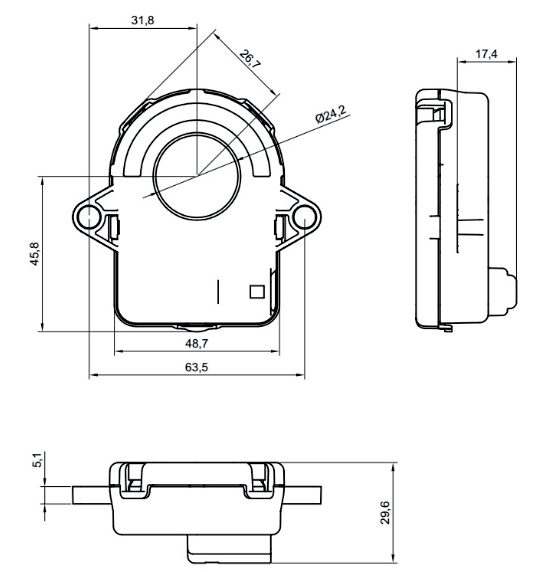

Size and Structure
| Parameter | Specification |
|---|---|
| Product Type | Digital Current Sensor (Through-Hole) |
| Primary Input Method | Through-hole (Aperture $\Phi$24 mm) |
| Measurement Range | 0 ... 500 A (Customizable) |
| Supply Voltage | 9 ... 16 VDC |
| Output Signal | CAN Bus (Digital Interface) |
| Accuracy (Linearity) | 0.1% F.S. |
| Mounting Type | Panel / Cable Mount |
| Dimensions | 63.5(L)17(W) 31.8 (H) mm |
